RT9011-EEGQWC

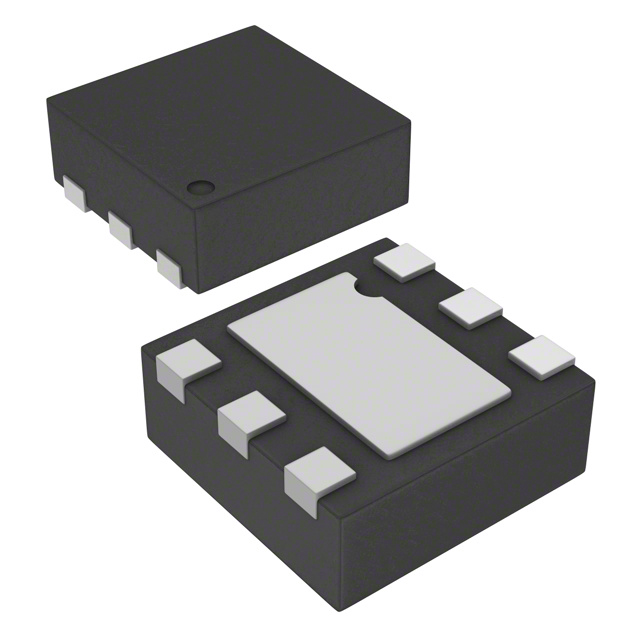

lmages are for reference only.RT9011-EEGQWC
IC REG LINEAR 2.1V/2.1V 6WDFN
Datasheet6-WFDFN Exposed Pad
26,696 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Linear Voltage Regulator IC Positive Fixed 2 Output 300mA, 300mA 6-WDFN (1.6x1.6)
RT9011-EEGQWC
| Category | Integrated Circuits (ICs) - Power Management PMIC - Voltage Regulators Linear-Low Drop Out LDO Regulators |
| Manufacturer | Richtek USA Inc. |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 2 |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 2.1V, 2.1V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.33V @ 300mA, 0.33V @ 300mA |
| Current - Output | 300mA, 300mA |
| Current - Quiescent (Iq) | 80 µA |
| PSRR | 70dB ~ 38dB (100Hz ~ 300kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Short Circuit |
| Operating Temperature | -40°C ~ 85°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 6-WFDFN Exposed Pad |
| Supplier Device Package | 6-WDFN (1.6x1.6) |
| Base Product Number | RT9011 |
| Current - Supply (Max) | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | RT9011-12GJ6 | RT9011-BJGJ6 | RT9011-BMGJ6 | RT9011-BMGQW |
| Manufacturer | Richtek USA Inc. | Richtek USA Inc. | Richtek USA Inc. | Richtek USA Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC REG LINEAR 1.2V/1.2V TSOT23-6 | IC REG LINEAR 1.3V/2.5V TSOT23-6 | IC REG LINEAR 1.3V/2.8V TSOT23-6 | IC REG LINEAR 1.3V/2.8V 8WDFN |
| Series | Richtek USA Inc. | Richtek USA Inc. | Richtek USA Inc. | Richtek USA Inc. |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
