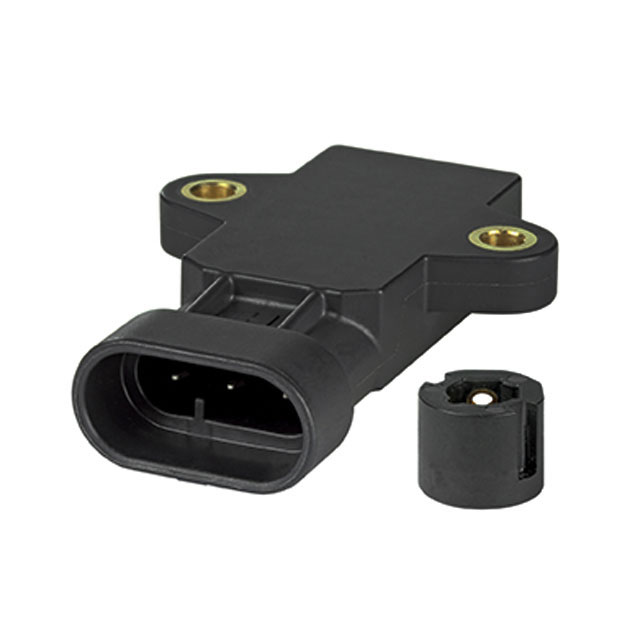

RTP180HVEAY
lmages are for reference only.RTP180HVEAY
ROTARY TWO PIECE 180 DEG HIGH VO
DatasheetBox with Connector
42,780 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Hall Effect Sensor Rotary Position External Magnet, Included Connector
RTP180HVEAY
| Category | Sensors, Transducers - Position Sensors - Angle-Linear Position Measuring |
| Manufacturer | Honeywell Sensing and Productivity Solutions |
| Series | RTP |
| Packaging | Bulk |
| RoHS Status | |
| For Measuring | Rotary Position |
| Technology | Hall Effect |
| Rotation Angle - Electrical, Mechanical | 180° (±90°) |
| Linear Range | - |
| Output | Analog Voltage |
| Output Signal | Clockwise Increase |
| Actuator Type | External Magnet, Included |
| Linearity | ±1% |
| Resistance | 10 kOhms |
| Resistance Tolerance | - |
| Voltage - Supply | 10V ~ 30V |
| Mounting Type | Chassis Mount |
| Termination Style | Connector |
| Operating Temperature | -40°C ~ 125°C |
| Package / Case | Box with Connector |
| Supplier Device Package | - |
| Grade | - |
| Qualification | - |
| Base Product Number | - |
| Product Attribute |  |
|
 |
|
| Part Number | RTP180HVEAA | RTP180HVEBY | RTP180HVNAA | RTP180HVNAY |
| Manufacturer | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions |
| RoHS Status | RoHS Compliant | RoHS Compliant | ||
| Description | SENSOR ROTARY 180DEG CONNECTOR | ROTARY TWO PIECE 180 DEG HIGH VO | SENSOR ROTARY 180DEG CONNECTOR | ROTARY TWO PIECE 180 DEG HIGH VO |
| Series | RTP | RTP | RTP | RTP |
| Packaging | Bulk | Bulk | Bulk | Bulk |
