Linear Voltage Regulator IC Positive Adjustable 1 Output 2A 20-WQFN (5x5)
RTQ2522BGQW(2)
| Category | Integrated Circuits (ICs) - Power Management PMIC - Voltage Regulators Linear-Low Drop Out LDO Regulators |
| Manufacturer | Richtek USA Inc. |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 0.8V |
| Voltage - Output (Max) | 3.6V |
| Voltage Dropout (Max) | 0.15V @ 2A |
| Current - Output | 2A |
| Current - Quiescent (Iq) | - |
| PSRR | 60dB ~ 30dB (1kHz ~ 300kHz) |
| Control Features | Enable, Power Good, Soft Start |
| Protection Features | Current Limit, Thermal Shutdown, UVLO |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 20-WQFN Exposed Pad |
| Supplier Device Package | 20-WQFN (5x5) |
| Base Product Number | RTQ2522 |
| Current - Supply (Max) | 2 mA |
| Product Attribute |  |
|
 |
 |
| Part Number | RTQ2510GQV-QA(2) | RTQ2513TGQW | RTQ2516GSP-QT | RTQ2520GQW |
| Manufacturer | Richtek USA Inc. | Richtek USA Inc. | Richtek USA Inc. | Richtek USA Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC REG LIN ADJ 1A VDFN-8 | IC REG LIN ADJ 3A WQFN-20 | IC REG LIN ADJ 2A PSOP-8 | IC REG LIN ADJ 2A WDFN-8 |
| Series | Richtek USA Inc. | Richtek USA Inc. | Richtek USA Inc. | Richtek USA Inc. |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
Recommended Products

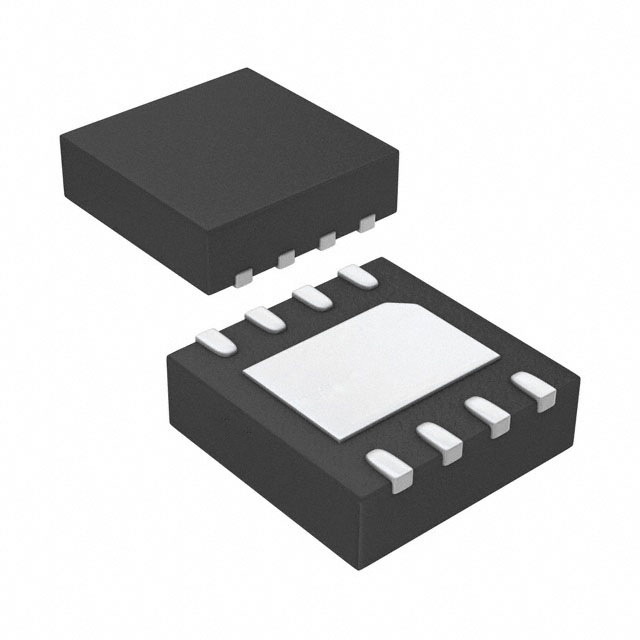

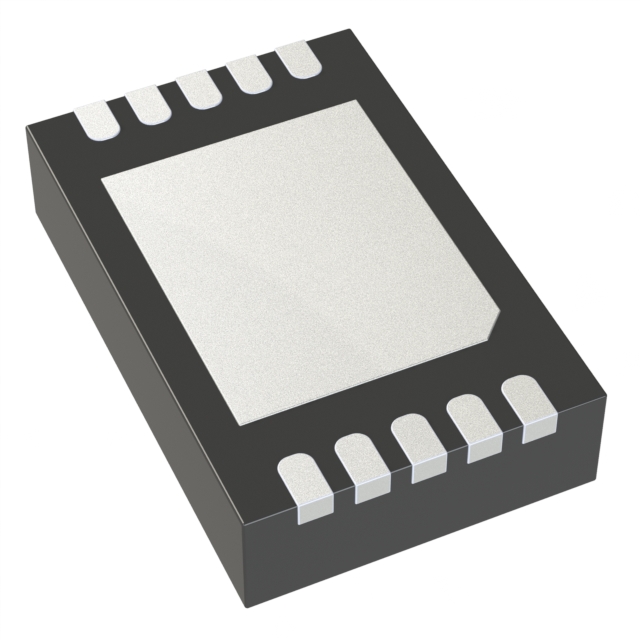

.jpg "RTQ2522AGQW(2)")

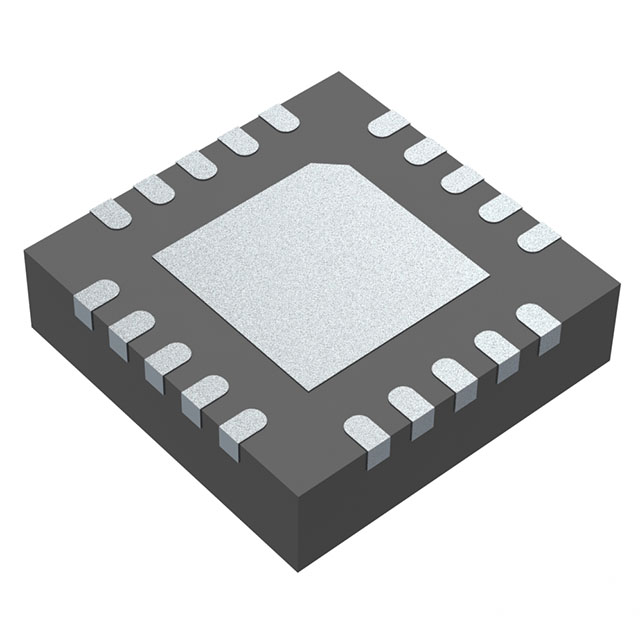

.jpg "RTQ2532NGQV(2)")
