RTV-2520DF321-S-26.000-TR

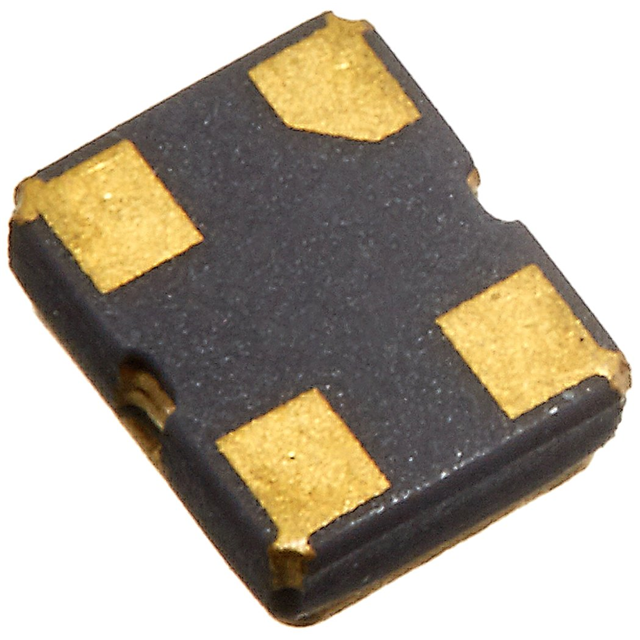

lmages are for reference only.RTV-2520DF321-S-26.000-TR
XTAL OSC VCTCXO 26MHZ 1.8V CLP S
Datasheet4-SMD, No Lead
24,814 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
26 MHz VCTCXO Clipped Sine Wave Oscillator 1.8V 4-SMD, No Lead
RTV-2520DF321-S-26.000-TR
| Category | Crystals, Oscillators, Resonators - Oscillators - |
| Manufacturer | Raltron Electronics |
| Series | RTV-2520 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Base Resonator | Crystal |
| Type | VCTCXO |
| Frequency | 26 MHz |
| Function | - |
| Output | Clipped Sine Wave |
| Voltage - Supply | 1.8V |
| Frequency Stability | ±2ppm |
| Absolute Pull Range (APR) | - |
| Operating Temperature | -30°C ~ 85°C |
| Spread Spectrum Bandwidth | - |
| Current - Supply (Max) | 2.5mA |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| Height - Seated (Max) | 0.031" (0.80mm) |
| Base Product Number | - |
| Product Attribute | |
 |
|
|
| Part Number | RTV-104AF328Y-S-19.200-TR | RTV-104BD3CP-S-24.000-TR | RTV-104BD3CP-S-24.000-TR | RTV-104BF3CP-S-24.000-TR |
| Manufacturer | Raltron Electronics | Raltron Electronics | Raltron Electronics | Raltron Electronics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | XTAL OSC VCTCXO 19.2MHZ 2.8V CLP | XTAL OSC VCTCXO 24MHZ CLPSNW | XTAL OSC VCTCXO 24MHZ CLPSNW | XTAL OSC VCTCXO 32MHZ CLPSNW |
| Series | Raltron Electronics | Raltron Electronics | Raltron Electronics | Raltron Electronics |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
