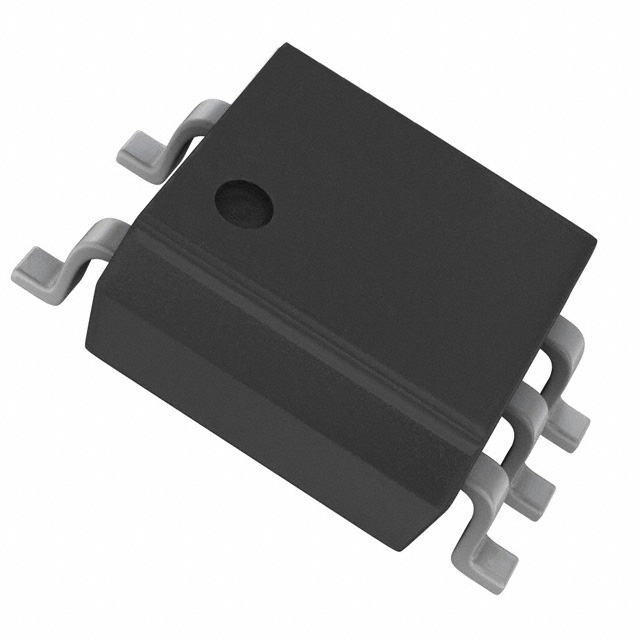

RV1S9161ACCSP-100C#SC0
lmages are for reference only.RV1S9161ACCSP-100C#SC0
SO-5
Datasheet6-SOIC (0.173", 4.40mm Width), 5 Leads
77,011 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Logic Output Optoisolator 15Mbps Push-Pull, Totem Pole 3750Vrms 1 Channel 100kV/µs CMTI 5-SO
RV1S9161ACCSP-100C#SC0
| Category | Isolators - Optoisolators - Logic Output Optoisolators |
| Manufacturer | Renesas Electronics Corporation |
| Series | RV |
| Packaging | Strip |
| RoHS Status | ROHS3 Compliant |
| Number of Channels | 1 |
| Inputs - Side 1/Side 2 | 1/0 |
| Voltage - Isolation | 3750Vrms |
| Common Mode Transient Immunity (Min) | 100kV/µs |
| Input Type | DC |
| Output Type | Push-Pull, Totem Pole |
| Current - Output / Channel | 25 mA |
| Data Rate | 15Mbps |
| Propagation Delay tpLH / tpHL (Max) | 60ns, 60ns |
| Rise / Fall Time (Typ) | - |
| Voltage - Forward (Vf) (Typ) | 1.54V |
| Current - DC Forward (If) (Max) | 20mA |
| Voltage - Supply | 4.5V ~ 30V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 6-SOIC (0.173", 4.40mm Width), 5 Leads |
| Supplier Device Package | 5-SO |
| Base Product Number | RV1S9161 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
|
|
| Part Number | RV1S9161ACCSP-100C#KC0 | RV1S9161ACCSP-100C#KC0 | RV1S9161ACCSP-100C#SC0 | RV1S9161ACCSP-100V#KC0 |
| Manufacturer | Renesas Electronics Corporation | Renesas Electronics Corporation | Renesas Electronics Corporation | Renesas Electronics Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | HI-SPD OPTOCPLR, SO5, UL, CSA | HI-SPD OPTOCPLR, SO5, UL, CSA | SO-5 | HI-SPD OPTOCPLR, SO5, UL, CSA, V |
| Series | - | - | RV | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Strip | Tape & Reel (TR)-->Cut Tape (CT) |
