RVPX-PE216DM2
lmages are for reference only.RVPX-PE216DM2
DAUGHTERCARD, EVO 2, RIGHT ANGLE
Datasheet-
22,031 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
112 Connector Plug, Male Blades Through Hole, Right Angle VITA 46, Center
RVPX-PE216DM2
| Category | Connectors, Interconnects - Backplane Connectors - Specialized |
| Manufacturer | Amphenol Aerospace Operations |
| Series | R-VPX Evolution |
| Packaging | Tray |
| RoHS Status | RoHS non-compliant |
| Connector Usage | Daughtercard |
| Connector Type | Plug, Male Blades |
| Connector Style | VITA 46, Center |
| Number of Positions | 112 |
| Number of Positions Loaded | All |
| Pitch | 0.071" (1.80mm) |
| Number of Rows | 7 |
| Number of Columns | 16 |
| Mounting Type | Through Hole, Right Angle |
| Termination | Press-Fit |
| Contact Layout, Typical | - |
| Features | Board Guide |
| Contact Finish | Gold |
| Contact Finish Thickness | 50.0µin (1.27µm) |
| Color | - |
| Current Rating (Amps) | 1.5A |
| Material Flammability Rating | - |
| Operating Temperature | - |
| Voltage Rating | - |
| Base Product Number | RVPX-PE |
| Product Attribute |  |
 |
 |
 |

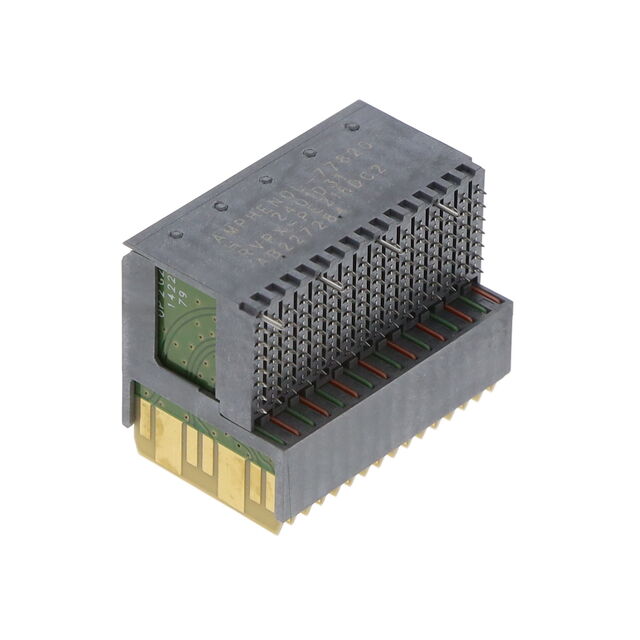

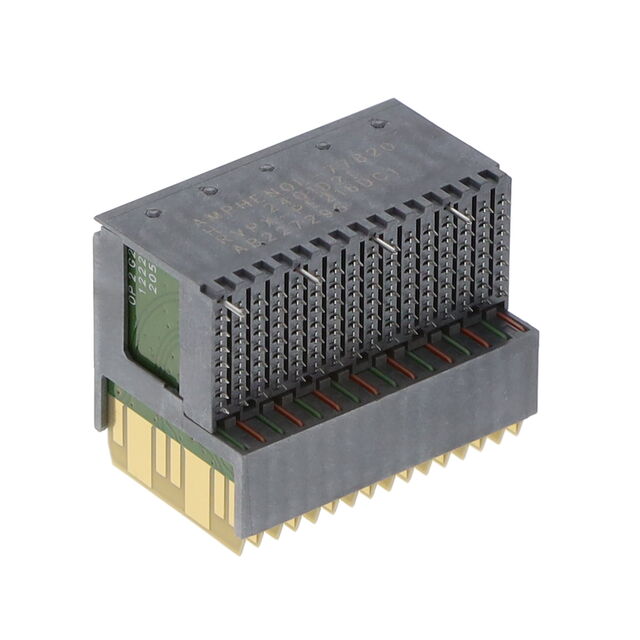

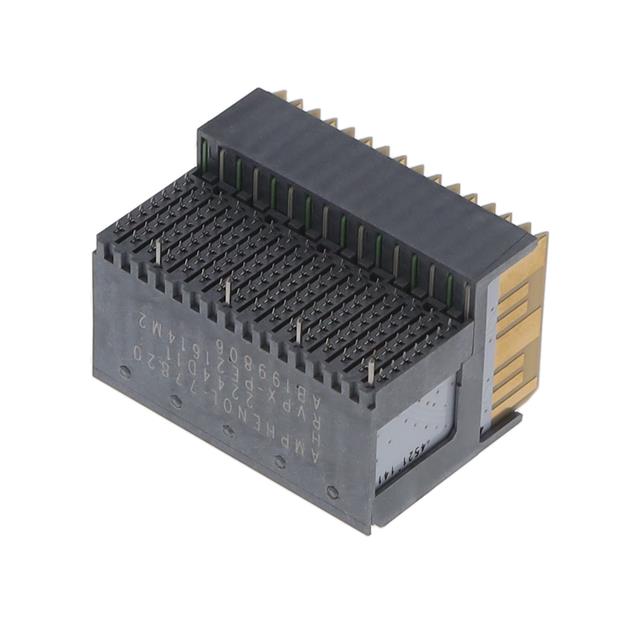

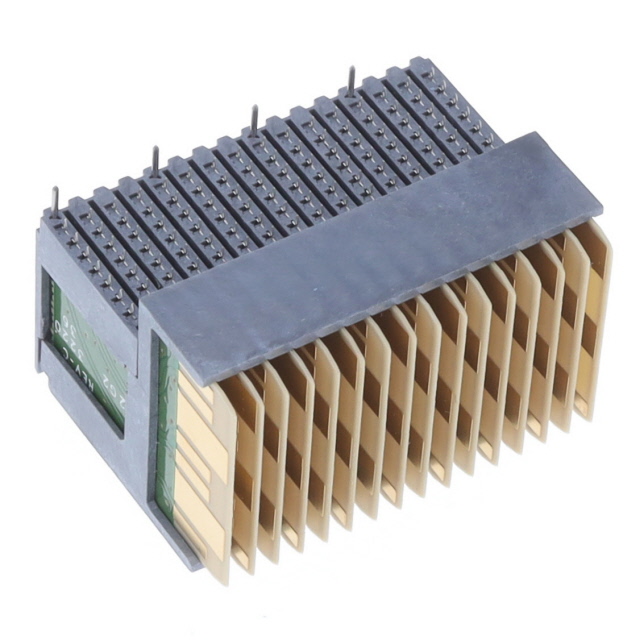

| Part Number | RVPX-PE216DM1 | RVPX-PE21614M2 | RVPX-PE216DC1 | RVPX-PE216DC2 |
| Manufacturer | Amphenol Aerospace Operations | Amphenol Aerospace Operations | Amphenol Aerospace Operations | Amphenol Aerospace Operations |
| RoHS Status | ROHS3 Compliant | RoHS non-compliant | ROHS3 Compliant | RoHS non-compliant |
| Description | DAUGHTERCARD, EVO 2, RIGHT ANGLE | VITA 46 CONNECTORS | VITA 46 CONNECTORS | VITA 46 CONNECTORS |
| Series | R-VPX Evolution | R-VPX Evolution | R-VPX Evolution | R-VPX Evolution |
| Packaging | Tray | Tray | Tray | Tray |
