Product CatalogPart Number
RW1S0CKR010DE
Manufacturer
OhmiteDescription
RES 0.01 OHM 0.5% 1W
Datasheet
DatasheetPackage
4324 J-Lead (4 Terminals)
In Stock
74,821 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
RW1S0CKR010DE
RW1S0CKR010DE

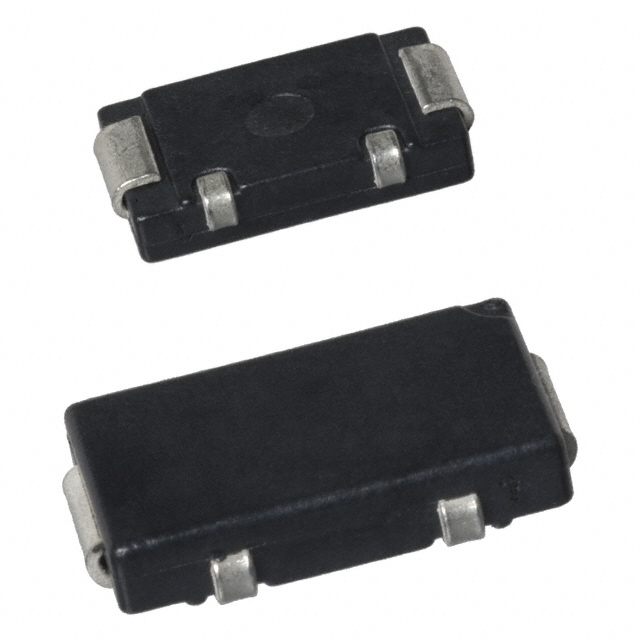

lmages are for reference only.Payment Methods
Delivery Services
10 mOhms ±0.5% 1W Chip Resistor 4324 J-Lead (4 Terminals) Current Sense, Flame Proof, Moisture Resistant, Safety Thick Film
Quick Inquiry
RW1S0CKR010DE
Specifications
| Category | Resistors - Chip Resistor Surface Mount - |
| Manufacturer | Ohmite |
| Series | RW1 |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Resistance | 10 mOhms |
| Tolerance | ±0.5% |
| Power (Watts) | 1W |
| Composition | Thick Film |
| Features | Current Sense, Flame Proof, Moisture Resistant, Safety |
| Temperature Coefficient | ±50ppm/°C |
| Operating Temperature | -55°C ~ 125°C |
| Package / Case | 4324 J-Lead (4 Terminals) |
| Supplier Device Package | - |
| Ratings | - |
| Size / Dimension | 0.425" L x 0.244" W (10.80mm x 6.20mm) |
| Height - Seated (Max) | 0.091" (2.30mm) |
| Number of Terminations | 4 |
| Failure Rate | - |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute | |
|
 |
 |
| Part Number | RW1S0CKR010DE | RW1S0CKR010DE | RW1S0CKR010FE | RW1S0CKR010FET |
| Manufacturer | Ohmite | Ohmite | Ohmite | Ohmite |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RES 0.01 OHM 0.5% 1W 4324 | RES 0.01 OHM 0.5% 1W 4324 | RES 0.01 OHM 1% 1W 4324 | RES 0.01 OHM 1% 1W 4324 |
| Series | Ohmite | Ohmite | ||
| Packaging | Bulk | Bulk |
