Product CatalogPart Number
RW3R0DBR100JE
Manufacturer
OhmiteDescription
RES 0.1 OHM 5% 3W J LEAD
Datasheet
DatasheetPackage
6327 J-Lead
In Stock
94,153 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
RW3R0DBR100JE
RW3R0DBR100JE
lmages are for reference only.Payment Methods
Delivery Services
100 mOhms ±5% 3W Chip Resistor 6327 J-Lead Current Sense Wirewound
Quick Inquiry
RW3R0DBR100JE
Specifications
| Category | Resistors - Chip Resistor Surface Mount - |
| Manufacturer | Ohmite |
| Series | |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Mfr | Ohmite |
| Series | RW |
| Resistance | 100 mOhms |
| Tolerance | ±5% |
| Power (Watts) | 3W |
| Composition | Wirewound |
| Features | Current Sense |
| Temperature Coefficient | ±90ppm/°C |
| Operating Temperature | -55°C ~ 150°C |
| Package / Case | 6327 J-Lead |
| Supplier Device Package | SMD J-Lead, Recessed |
| Ratings | - |
| Size / Dimension | 0.625" L x 0.273" W (15.88mm x 6.93mm) |
| Height - Seated (Max) | 0.231" (5.87mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

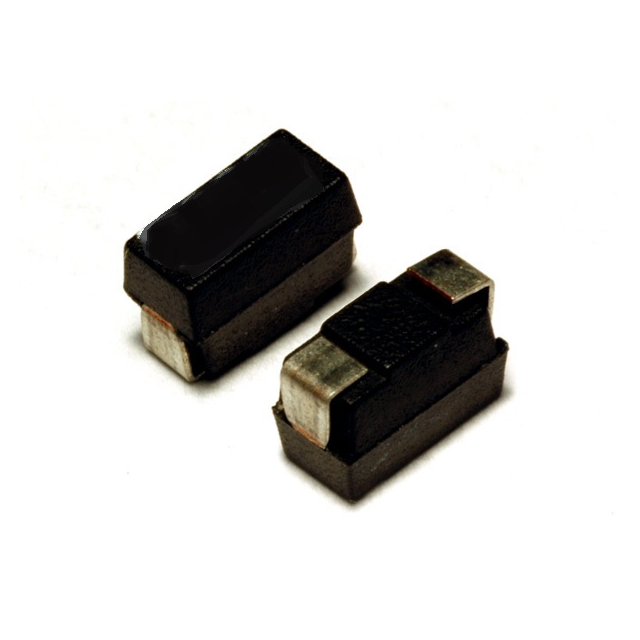

| Part Number | RW3R0DBR100F | RW3R0DBR100JET | RW3R0DB100RJ | RW3R0DB100RJET |
| Manufacturer | Ohmite | Ohmite | Ohmite | Ohmite |
| RoHS Status | ROHS3 Compliant | RoHS non-compliant | ROHS3 Compliant | |
| Description | RES 100M OHM 1% 3W 6327 | RES 0.1 OHM 5% 3W J LEAD | RES SMD 100 OHM 5% 3W J LEAD | RES 100 OHM 5% 3W 6327 J LEAD |
| Series | Ohmite | Ohmite | Ohmite | |
| Packaging | Bulk | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
Customers Also Interested in
Recommended Products
RW3R0DB100RJ
Ohmite
RW3R0DB100RJET
Ohmite
RW3R0DB10R0JE
Ohmite
RW3R0DB10R0JET
Ohmite

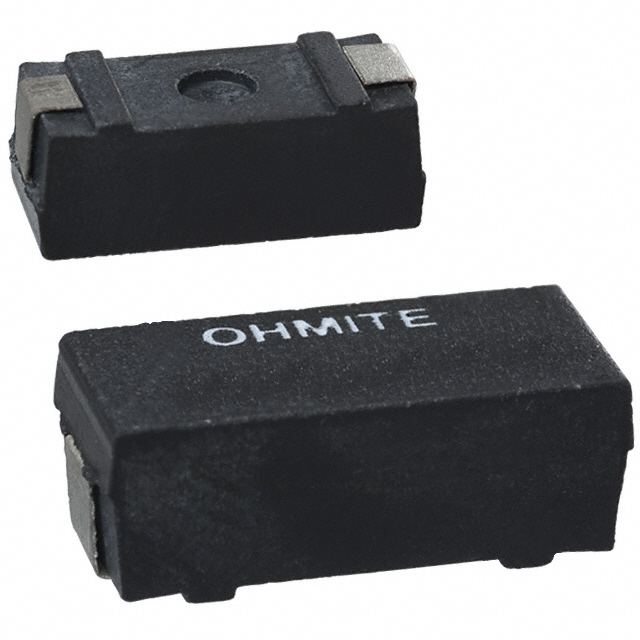

RW3R0DB150RJE
