Product CatalogPart Number
RXG13B7
Manufacturer
Schneider ElectricDescription
HARMONY, INTERFACE PLUG-IN RELAY
Datasheet
DatasheetPackage
-
In Stock
71,004 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
RXG13B7
RXG13B7
lmages are for reference only.Payment Methods
Delivery Services

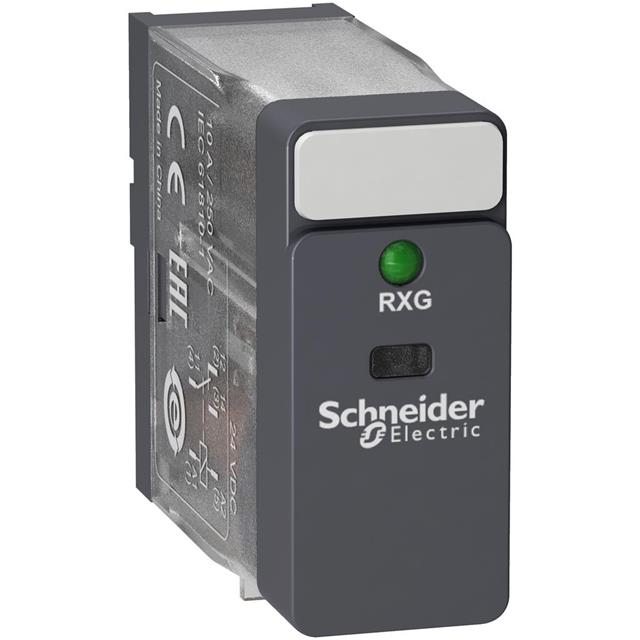

General Purpose Relay SPDT (1 Form C) 24VAC Coil Socketable
Quick Inquiry
RXG13B7
Specifications
| Category | Relays - Power Relays-Over 2 Amps - |
| Manufacturer | Schneider Electric |
| Series | Harmony |
| Packaging | Box |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Socketable |
| Coil Voltage | 24VAC |
| Contact Form | SPDT (1 Form C) |
| Contact Rating (Current) | 10 A |
| Switching Voltage | 250VAC, 30VDC - Max |
| Load - Max Switching | 2500VA, 300W |
| Coil Current | - |
| Coil Type | Non Latching |
| Features | Lighted Indicator |
| Termination Style | Plug In |
| Seal Rating | - |
| Coil Insulation | - |
| Must Operate Voltage | 19.2 VAC |
| Must Release Voltage | 7.2 VAC |
| Operate Time | 20 ms |
| Release Time | 20 ms |
| Operating Temperature | -40°C ~ 70°C |
| Contact Material | Silver Tin Oxide Indium Oxide (AgSnOInO) |
| Approval Agency | CE, CSA, DNV-GL, EAC, UL |
| Relay Type | General Purpose |
| Grade | - |
| Qualification | - |
| Coil Resistance | - |
| Base Product Number | RXG13 |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | RXG13BD | RXG11B7 | RXG11BD | RXG11F7 |
| Manufacturer | Schneider Electric | Schneider Electric | Schneider Electric | Schneider Electric |
| RoHS Status | ROHS3 Compliant | |||

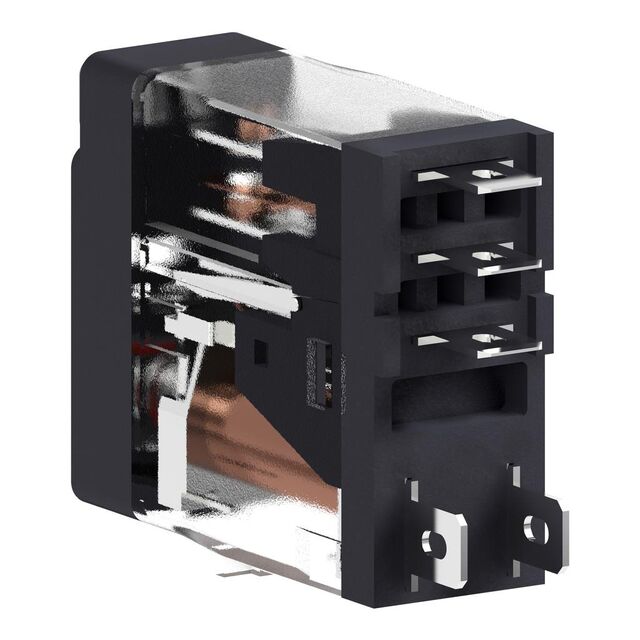

| Description | HARMONY, INTERFACE PLUG-IN RELAY | RELAY 1CO 10A@250VAC 24VAC COIL | RELAY 1CO 10A@250VAC 24VDC COIL | RELAY 1CO 10A@250VAC 120VAC COIL |
| Series | Schneider Electric | Schneider Electric | Schneider Electric | Schneider Electric |
| Packaging | Box | Box | Box | Box |
