Product CatalogPart Number
RXG25B7
Manufacturer
Schneider ElectricDescription
HARMONY, INTERFACE PLUG-IN RELAY
Datasheet
DatasheetPackage
-
In Stock
47,281 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation

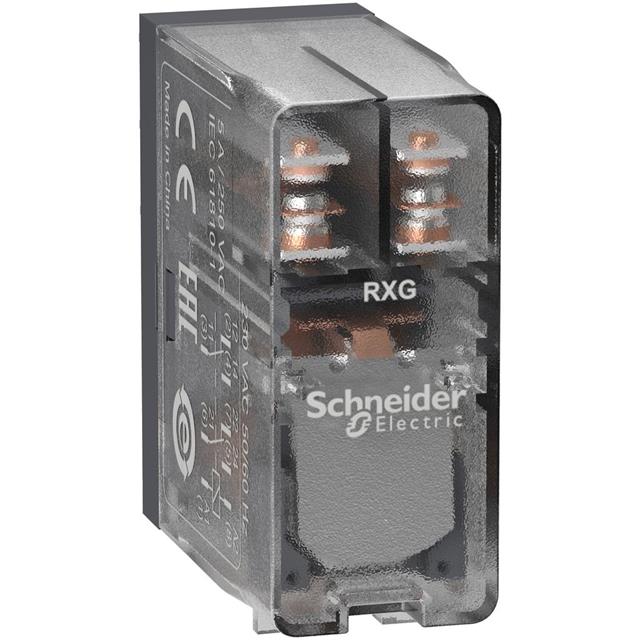

RXG25B7
RXG25B7
lmages are for reference only.Payment Methods
Delivery Services
General Purpose Relay DPDT (2 Form C) 24VAC Coil Socketable
Quick Inquiry
RXG25B7
Specifications
| Category | Relays - Power Relays-Over 2 Amps - |
| Manufacturer | Schneider Electric |
| Series | Harmony |
| Packaging | Box |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Socketable |
| Coil Voltage | 24VAC |
| Contact Form | DPDT (2 Form C) |
| Contact Rating (Current) | 5 A |
| Switching Voltage | 250VAC, 30VDC - Max |
| Load - Max Switching | 1250VA, 150W |
| Coil Current | - |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | Plug In |
| Seal Rating | - |
| Coil Insulation | - |
| Must Operate Voltage | - |
| Must Release Voltage | 7.2 VAC |
| Operate Time | 20 ms |
| Release Time | 20 ms |
| Operating Temperature | -40°C ~ 70°C |
| Contact Material | Silver Tin Oxide Indium Oxide (AgSnOInO) |
| Approval Agency | CE, CSA, DNV-GL, EAC, UL |
| Relay Type | General Purpose |
| Grade | - |
| Qualification | - |
| Coil Resistance | - |
| Base Product Number | RXG25 |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

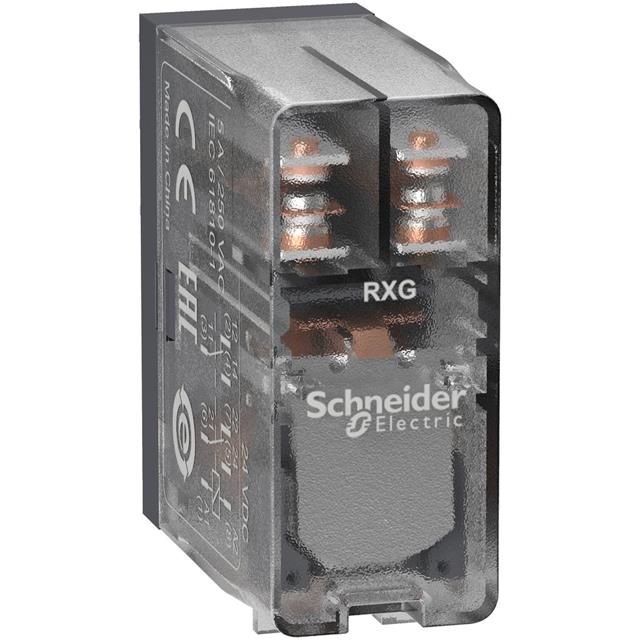

| Part Number | RXG25BD | RXG21B7 | RXG21BD | RXG21E7 |
| Manufacturer | Schneider Electric | Schneider Electric | Schneider Electric | Schneider Electric |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | HARMONY, INTERFACE PLUG-IN RELAY | HARMONY, INTERFACE PLUG-IN RELAY | HARMONY, INTERFACE PLUG-IN RELAY | HARMONY, INTERFACE PLUG-IN RELAY |
| Series | Schneider Electric | Schneider Electric | Schneider Electric | Schneider Electric |
| Packaging | Box | Box | Box | Box |
