Product CatalogPart Number
RXM2AB2BD
Manufacturer
Schneider ElectricDescription
HARMONY, MINIATURE PLUG-IN RELAY
Datasheet
DatasheetPackage
-
In Stock
16,692 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
RXM2AB2BD
RXM2AB2BD
lmages are for reference only.Payment Methods
Delivery Services
General Purpose Relay DPDT (2 Form C) 24VDC Coil Socketable
Quick Inquiry
RXM2AB2BD
Specifications
| Category | Relays - Power Relays-Over 2 Amps - |
| Manufacturer | Schneider Electric |
| Series | Harmony |
| Packaging | Box |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Socketable |
| Coil Voltage | 24VDC |
| Contact Form | DPDT (2 Form C) |
| Contact Rating (Current) | 10 A |
| Switching Voltage | 250VAC, 28VDC - Max |
| Load - Max Switching | 2500VA, 280W |
| Coil Current | 36.9 mA |
| Coil Type | Non Latching |
| Features | Lighted Indicator, Test Button |
| Termination Style | Plug In |
| Seal Rating | - |
| Coil Insulation | - |
| Must Operate Voltage | 19.2 VDC |
| Must Release Voltage | 2.4 VDC |
| Operate Time | 20 ms |
| Release Time | 20 ms |
| Operating Temperature | -40°C ~ 55°C |
| Contact Material | Silver Nickel (AgNi) |
| Approval Agency | CE, CSA, IECEE, GOST, Lloyd's, UL |
| Relay Type | General Purpose |
| Grade | - |
| Qualification | - |
| Coil Resistance | 650 Ohms |
| Base Product Number | RXM2A |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | RXM2AB2B7 | RXM2AB2B7PVM | RXM2AB2B7PVS | RXM2AB2BDPVS |
| Manufacturer | Schneider Electric | Schneider Electric | Schneider Electric | Schneider Electric |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | HARMONY, MINIATURE PLUG-IN RELAY | RXM RLY MIXED SCKT2C/O 10A 24VAC | RXM RLY SEPARATE SCKT2C/O 10A 24 | RXM RLY SEPARATE SCKT2C/O 10A 24 |
| Series | Schneider Electric | Schneider Electric | Schneider Electric | Schneider Electric |
| Packaging | Box | Box | Box | Box |
Customers Also Interested in
Recommended Products

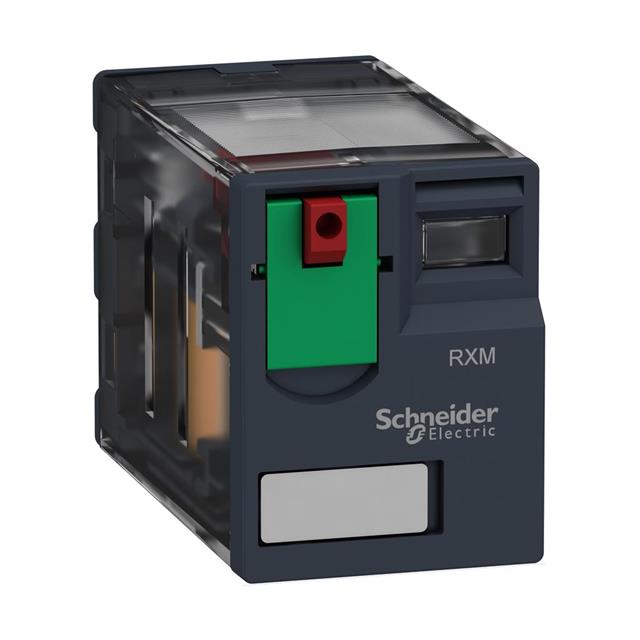

RXM2AB1B7
Schneider Electric
RXM2AB1BD
Schneider Electric
RXM2AB1E7
Schneider Electric
RXM2AB1ED
Schneider Electric
RXM2AB1F7
Schneider Electric
RXM2AB1FD
Schneider Electric

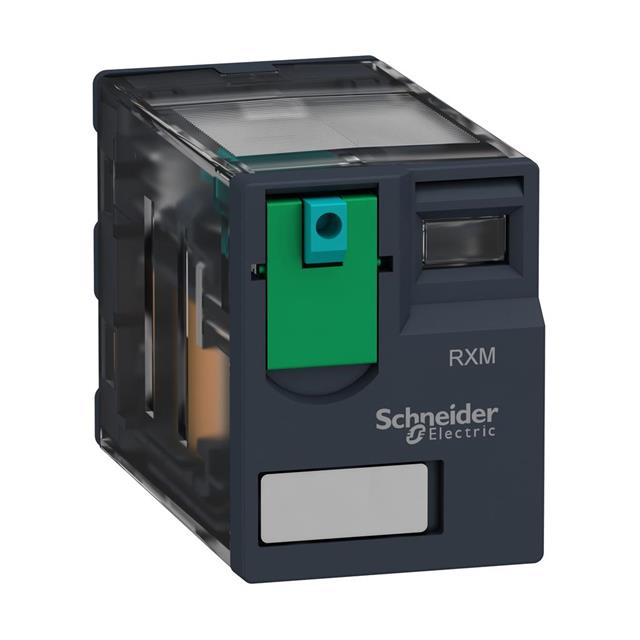

RXM2AB1JD
Schneider Electric
RXM2AB1P7
Schneider Electric
RXM2AB2B7
Schneider Electric

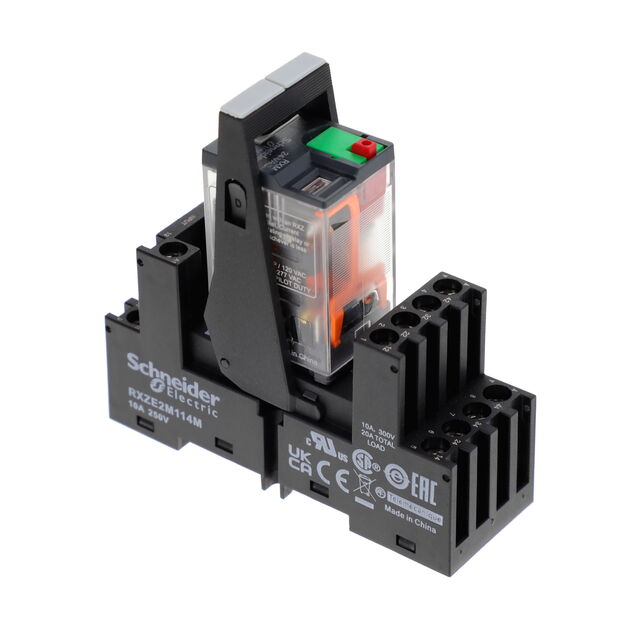

RXM2AB2B7PVM
Schneider Electric

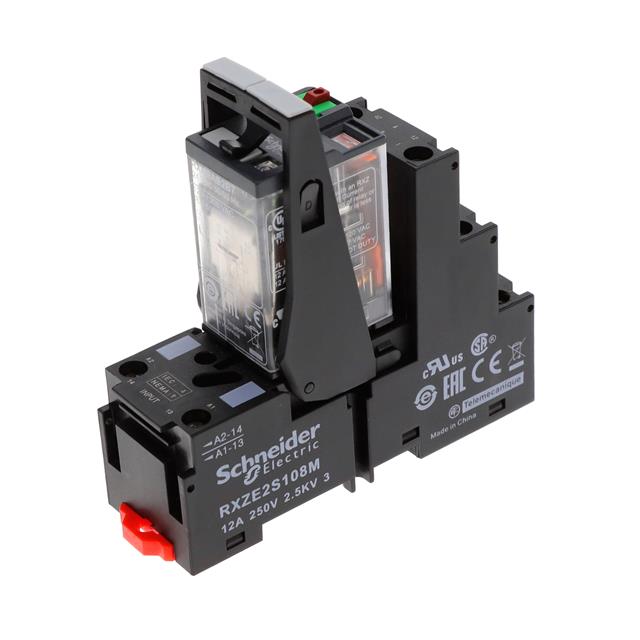

RXM2AB2B7PVS
Schneider Electric

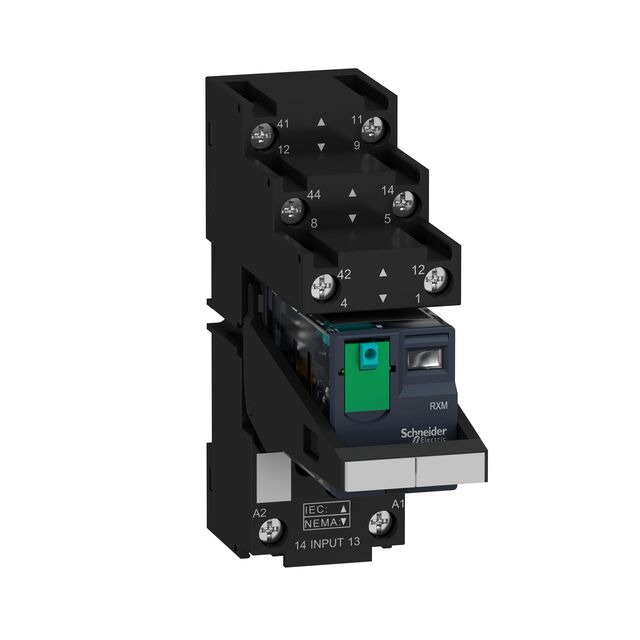

RXM2AB2BDPVS
Schneider Electric
RXM2AB2E7
Schneider Electric
RXM2AB2ED
Schneider Electric

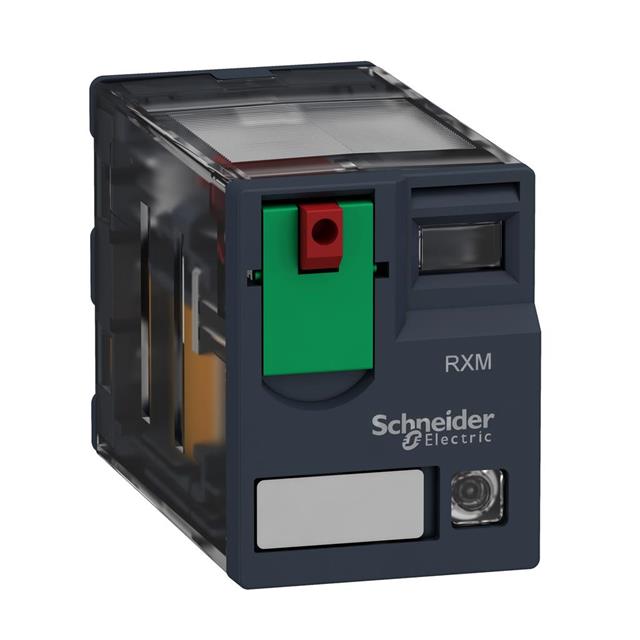

RXM2AB2F7
Schneider Electric

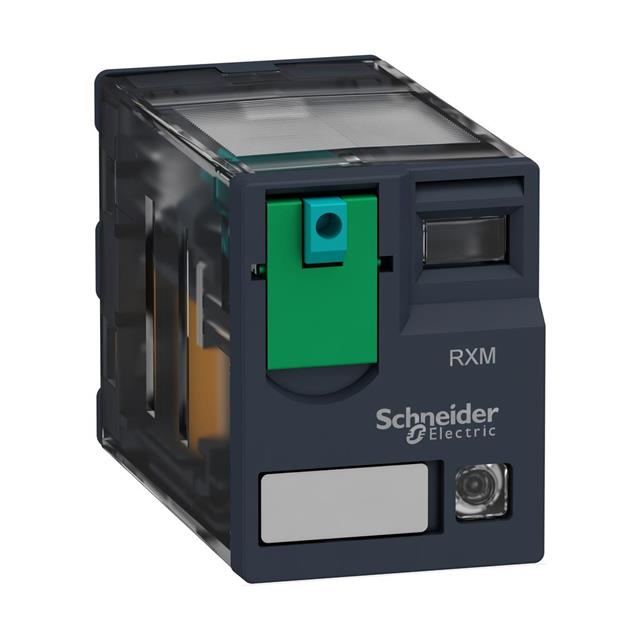

RXM2AB2FD
