S14100036
lmages are for reference only.S14100036
FIXED IND 56UH 17A 8.5 MOHM TH
DatasheetRadial, Vertical (Open)
73,346 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
56 µH Unshielded Toroidal Inductor 17 A 8.5mOhm Max Radial, Vertical (Open)
S14100036
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Würth Elektronik |
| Series | WE-LCB |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Type | Toroidal |
| Material - Core | Iron Powder |
| Inductance | 56 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 17 A |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 8.5mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical (Open) |
| Supplier Device Package | - |
| Size / Dimension | 1.417" L x 0.906" W (36.00mm x 23.00mm) |
| Height - Seated (Max) | 1.378" (35.00mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
|
| Part Number | S14100032 | S14100033 | S14100034 | S14100035 |
| Manufacturer | Würth Elektronik | Würth Elektronik | Würth Elektronik | Würth Elektronik |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

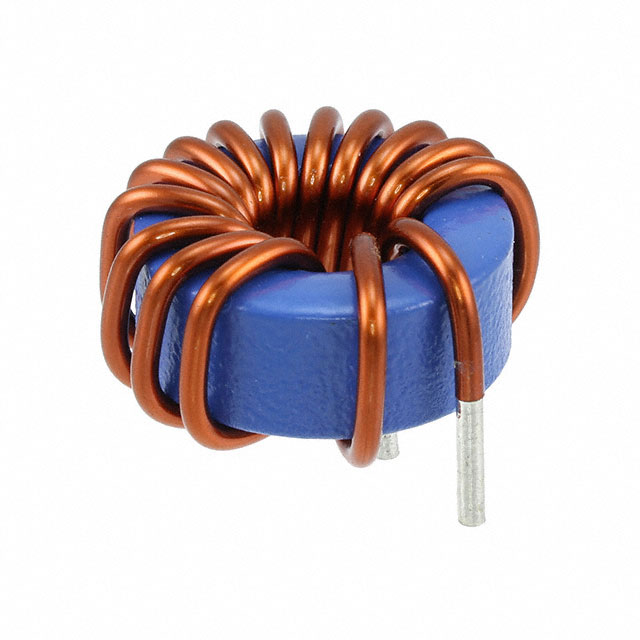

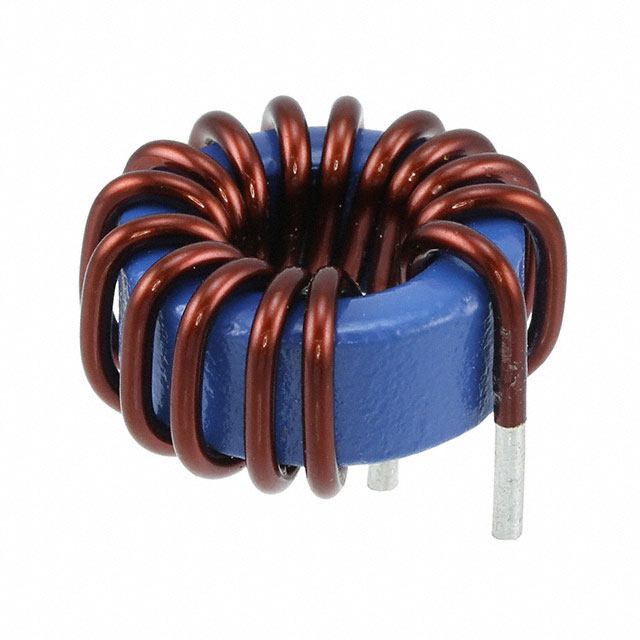

| Description | FIXED IND 150UH 10A 21 MOHM TH | FIXED IND 15UH 15A 5 MOHM TH | FIXED IND 22UH 18A 4.5 MOHM TH | FIXED IND 307UH 7A 65 MOHM TH |
| Series | Würth Elektronik | Würth Elektronik | Würth Elektronik | Würth Elektronik |
| Packaging | Tray | Tray | Tray | Tray |
