S1JHR3G
lmages are for reference only.S1JHR3G
DIODE GEN PURP 600V 1A DO214AC
DatasheetDO-214AC, SMA
93,027 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Diode 600 V 1A Surface Mount DO-214AC (SMA)
S1JHR3G
| Category | Discrete Semiconductor Products - Diodes - Rectifiers |
| Manufacturer | Taiwan Semiconductor Corporation |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) | 600 V |
| Current - Average Rectified (Io) | 1A |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 1 A |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 1.5 µs |
| Current - Reverse Leakage @ Vr | 1 µA @ 600 V |
| Capacitance @ Vr, F | 12pF @ 4V, 1MHz |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AC, SMA |
| Supplier Device Package | DO-214AC (SMA) |
| Operating Temperature - Junction | -55°C ~ 175°C |
| Base Product Number | S1J |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Product Attribute |  |
 |
 |
 |

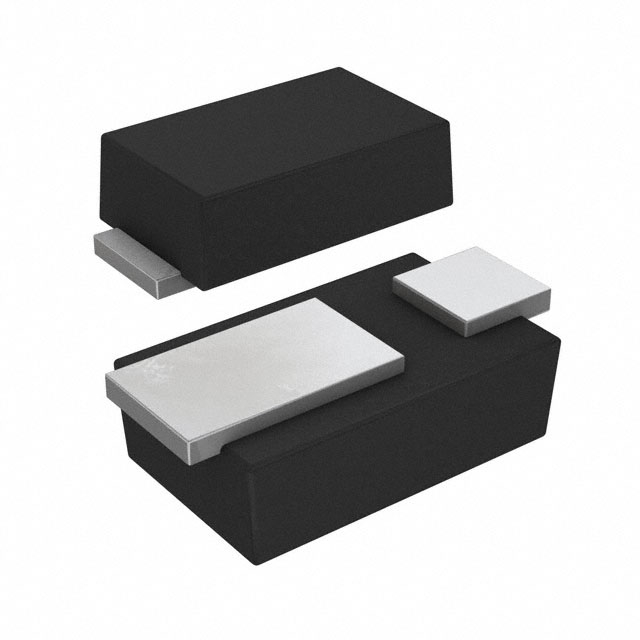

| Part Number | S1JH | S1JHE | S1JHE3/5AT | S1JHE3/61T |
| Manufacturer | Taiwan Semiconductor Corporation | onsemi | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DIODE GEN PURP 600V 1A DO214AC | DIODE GEN PURP 600V 1A SOD323HE | DIODE GEN PURP 600V 1A DO214AC | DIODE GEN PURP 600V 1A DO214AC |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
