Product CatalogPart Number
S25P100D15X
Manufacturer
TamuraDescription
SENSOR CURRENT HALL 100A AC/DC
Datasheet
DatasheetPackage
Module, Single Pass Through
In Stock
10,241 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
S25P100D15X
S25P100D15X
lmages are for reference only.Payment Methods
Delivery Services
Current Sensor 100A 1 Channel Hall Effect, Closed Loop Bidirectional Module, Single Pass Through
Quick Inquiry
S25P100D15X
Specifications
| Category | Sensors, Transducers - Current Sensors - |
| Manufacturer | Tamura |
| Series | - |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| For Measuring | AC/DC |
| Sensor Type | Hall Effect, Closed Loop |
| Current - Sensing | 100A |
| Number of Channels | 1 |
| Output | Ratiometric, Current |
| Sensitivity | - |
| Frequency | DC ~ 100kHz |
| Linearity | ±0.15% |
| Accuracy | ±0.5% |
| Voltage - Supply | ±12V ~ 15V |
| Response Time | 1µs |
| Current - Supply (Max) | 16mA |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Bidirectional |
| Mounting Type | Through Hole |
| Package / Case | Module, Single Pass Through |
| Supplier Device Package | - |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
|
| Part Number | S25P100D15Y | S25P150D15Y | S42S1T0D24ZJ | S22P015S05M2 |
| Manufacturer | Tamura | Tamura | Tamura | Tamura |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |

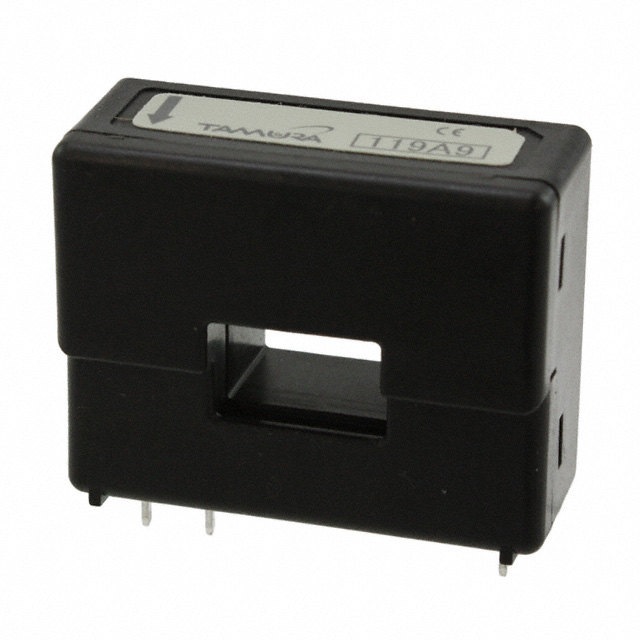

| Description | SENSOR CURRENT HALL 100A AC/DC | SENSOR CURRENT HALL 150A AC/DC | CURRENT SENSOR (1000A; 24V; 5000 | SENSOR CURRENT HALL 15A AC/DC |
| Series | Tamura | Tamura | Tamura | Tamura |
| Packaging | Bulk | Bulk | Tray | Bulk |
