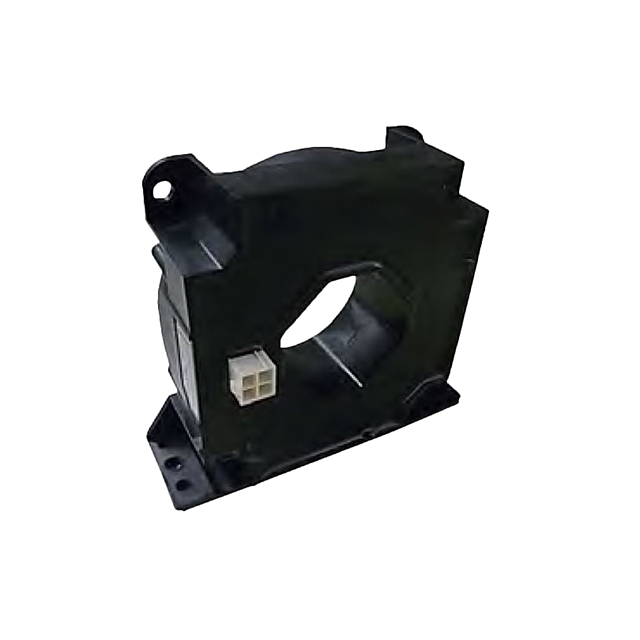

Current Sensor 1000A 1 Channel Hall Effect, Closed Loop Bidirectional Module, Single Pass Through
S29S1T0D24ZM
| Category | Sensors, Transducers - Current Sensors - |
| Manufacturer | Tamura |
| Series | - |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| For Measuring | AC/DC |
| Sensor Type | Hall Effect, Closed Loop |
| Current - Sensing | 1000A |
| Number of Channels | 1 |
| Output | Ratiometric, Current |
| Sensitivity | - |
| Frequency | DC ~ 100kHz |
| Linearity | ±0.1% |
| Accuracy | ±0.1% |
| Voltage - Supply | ±15V ~ 24V |
| Response Time | 1µs |
| Current - Supply (Max) | 200mA |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Bidirectional |
| Mounting Type | - |
| Package / Case | Module, Single Pass Through |
| Supplier Device Package | - |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

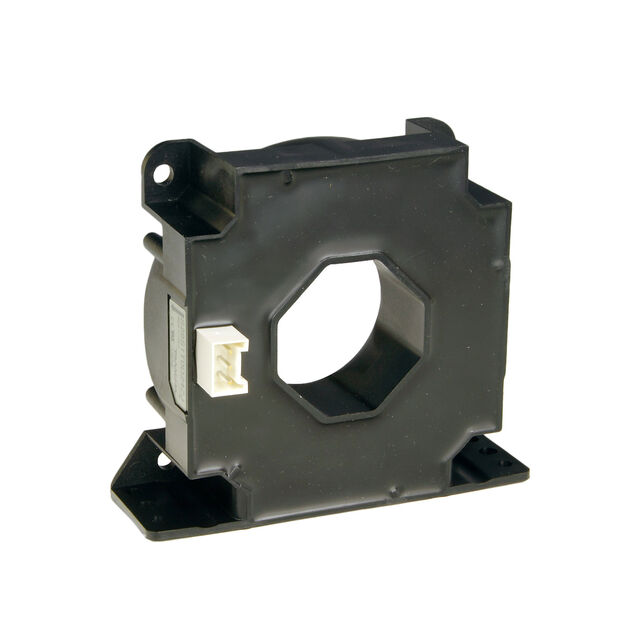

| Part Number | S29S1T0D24Z | S29S1T0D24ZJ | S22P015S05M2 | S22P025S05 |
| Manufacturer | Tamura | Tamura | Tamura | Tamura |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | SENSOR | SENSOR | SENSOR CURRENT HALL 15A AC/DC | SENSOR CURRENT HALL 25A AC/DC |
| Series | Tamura | Tamura | Tamura | Tamura |
| Packaging | Bulk | Tray | Bulk | Bulk |
