Product CatalogPart Number
S4-0R1J1
Manufacturer
Riedon products by BournsDescription
RES 0.1 OHM 5% 2W 4525
Datasheet
DatasheetPackage
4525 J-Lead
In Stock
42,662 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
S4-0R1J1
S4-0R1J1

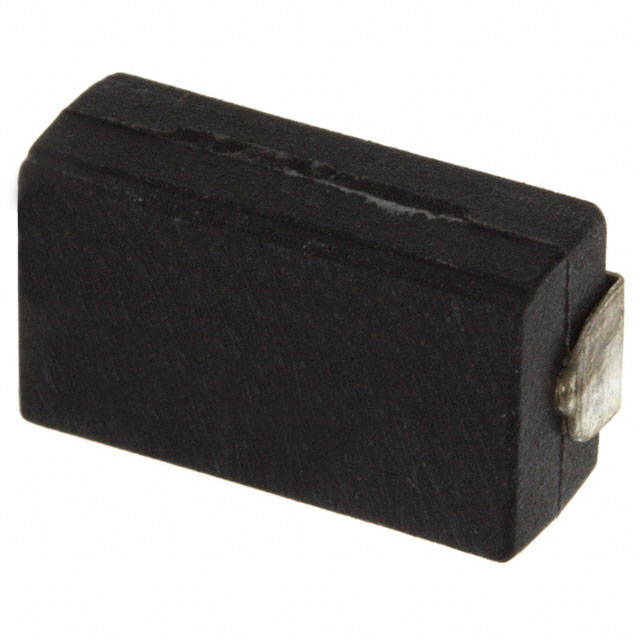

lmages are for reference only.Payment Methods
Delivery Services
100 mOhms ±5% 2W Chip Resistor 4525 J-Lead Current Sense, Flame Proof, Moisture Resistant, Pulse Withstanding, Safety Wirewound
Quick Inquiry
S4-0R1J1
Specifications
| Category | Resistors - Chip Resistor Surface Mount - |
| Manufacturer | Riedon products by Bourns |
| Series | S |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Resistance | 100 mOhms |
| Tolerance | ±5% |
| Power (Watts) | 2W |
| Composition | Wirewound |
| Features | Current Sense, Flame Proof, Moisture Resistant, Pulse Withstanding, Safety |
| Temperature Coefficient | - |
| Operating Temperature | -55°C ~ 275°C |
| Package / Case | 4525 J-Lead |
| Supplier Device Package | - |
| Ratings | - |
| Size / Dimension | 0.449" L x 0.252" W (11.40mm x 6.40mm) |
| Height - Seated (Max) | 0.197" (5.00mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | S4-0R005J2 | S4-0R015F1 | S4-0R015J8 | S4-0R01F1 |
| Manufacturer | Riedon products by Bourns | Riedon products by Bourns | Riedon products by Bourns | Riedon products by Bourns |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RES 0.005 OHM 5% 2W 4525 | RES 0.015 OHM 1% 2W 4525 | RES 0.015 OHM 5% 2W 4525 | RES 0.01 OHM 1% 2W 4525 |
| Series | Riedon products by Bourns | Riedon products by Bourns | Riedon products by Bourns | Riedon products by Bourns |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
