S48SP12003NRFB
lmages are for reference only.S48SP12003NRFB
DC DC CONVERTER 12V 36W
Datasheet6-DIP Module, 1x1 Brick
45,932 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Isolated Module DC DC Converter 1 Output 12V 3A 36V - 75V Input
S48SP12003NRFB
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Delta Electronics |
| Series | Delphi S48SP (35W) |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 36V |
| Voltage - Input (Max) | 75V |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 3A |
| Power (Watts) | 36 W |
| Applications | ITE (Commercial) |
| Features | Remote On/Off, OCP, OTP, OVP, UVLO |
| Operating Temperature | -40°C ~ 113°C |
| Efficiency | 90% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 6-DIP Module, 1x1 Brick |
| Size / Dimension | 1.30" L x 0.96" W x 0.34" H (33.0mm x 24.4mm x 8.6mm) |
| Supplier Device Package | - |
| Control Features | Enable, Active Low |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | S48SP |
| Voltage - Isolation | 2.25 kV |
| Product Attribute |  |
 |
 |
|

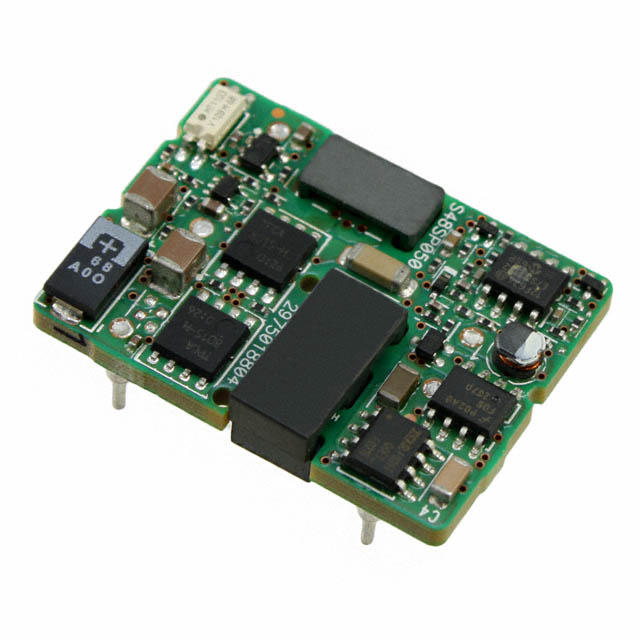

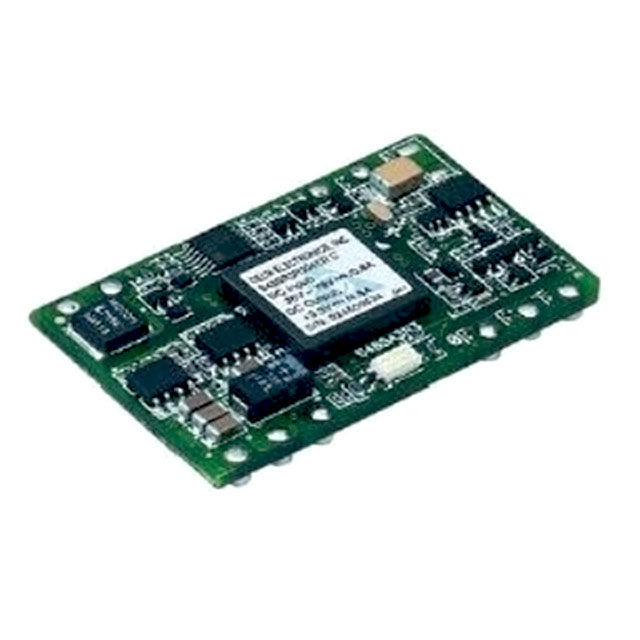

| Part Number | S48SA05006NRFB | S48SA3R310NRFA | S48SP05007NMFB | S48SP05007NMFB |
| Manufacturer | Delta Electronics | Delta Electronics | Delta Electronics | Delta Electronics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DC DC CONVERTER 5V 33W | DC DC CONVERTER 3.3V 33W | DC DC CONVERTER 5V 35W | DC DC CONVERTER 5V 35W |
| Series | Delta Electronics | Delta Electronics | Delta Electronics | Delta Electronics |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
