S6AP413AFBGN1C000
lmages are for reference only.S6AP413AFBGN1C000
IC REG BUCK BST 1.2V QUAD 32QFN
Datasheet32-WFQFN Exposed Pad
74,949 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Buck, Buck-Boost Switching Regulator IC Positive Fixed 1.2V, 1.8V, 3.3V, 1.2V 4 Output 2A, 1.2A, 600mA, 2A 32-WFQFN Exposed Pad
S6AP413AFBGN1C000
| Category | Integrated Circuits (ICs) - Power Management PMIC - Voltage Regulators DC DC Switching Regulators |
| Manufacturer | Infineon Technologies |
| Series | - |
| Packaging | Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Function | Step-Down, Step-Up/Step-Down |
| Output Configuration | Positive |
| Topology | Buck, Buck-Boost |
| Output Type | Fixed |
| Number of Outputs | 4 |
| Voltage - Input (Min) | 2.5V |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 1.2V, 1.8V, 3.3V, 1.2V |
| Voltage - Output (Max) | - |
| Current - Output | 2A, 1.2A, 600mA, 2A |
| Frequency - Switching | 3MHz |
| Synchronous Rectifier | Yes |
| Operating Temperature | -30°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 32-WFQFN Exposed Pad |
| Supplier Device Package | 32-QFN (5x5) |
| Base Product Number | S6AP413 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

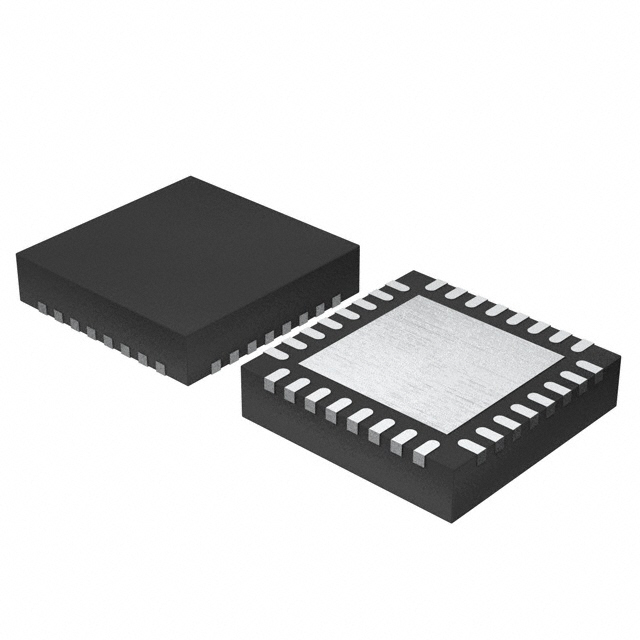

| Part Number | S6AP412A28GN1C000 | S6AP412A38GN1C000 | S6AP412A78GN1C000 | S6AP412AF8GN1C000 |
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC REG BUCK BST 0.9V TRPL 32QFN | IC REG BUCK BST 0.9V TRPL 32QFN | IC REG BUCK BOOST 1V TRPL 32QFN | IC REG BUCK BST 1.2V TRPL 32QFN |
| Series | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Packaging | Cut Tape (CT) | Cut Tape (CT) | Cut Tape (CT) | Cut Tape (CT) |
