Product CatalogPart Number
S6E2DH5G0AGV20000
Manufacturer
SpansionDescription
IC MCU 32BIT 384KB FLASH 120LQFP
Datasheet
DatasheetPackage
120-LQFP
In Stock
27,039 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
S6E2DH5G0AGV20000
S6E2DH5G0AGV20000
lmages are for reference only.Payment Methods
Delivery Services
ARM® Cortex®-M4F FM4 S6E2DH Microcontroller IC 32-Bit Single-Core 160MHz 384KB (384K x 8) FLASH 120-LQFP (16x16)
Quick Inquiry
S6E2DH5G0AGV20000
Specifications
| Category | Integrated Circuits (ICs) - Embedded - Microcontrollers |
| Manufacturer | Spansion |
| Series | FM4 S6E2DH |
| Packaging | Bulk |
| RoHS Status | |
| Core Processor | ARM® Cortex®-M4F |
| Core Size | 32-Bit Single-Core |
| Speed | 160MHz |
| Connectivity | CANbus, CSIO, EBI/EMI, I2C, LINbus, SD, SPI, UART/USART, USB |
| Peripherals | DMA, I2S, LVD, POR, PWM, WDT |
| Number of I/O | 98 |
| Program Memory Size | 384KB (384K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 36K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 3.6V |
| Data Converters | A/D 24x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 120-LQFP (16x16) |
| Package / Case | 120-LQFP |
| Base Product Number | S6E2DH5 |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
|
 |
|
| Part Number | S6E2DH5G0AGB3000A | S6E2DH5G0AGV20000 | S6E2DH5GJAMV20000 | S6E2DH5J0AGV2000A |
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC MCU 32BIT 384KB FLASH 161FBGA | IC MCU 32BIT 384KB FLASH 120LQFP | IC MCU 32BIT 384KB FLASH 120LQFP | IC MCU 32BIT 384KB FLASH 176LQFP |
| Series | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Packaging | Tray | Tray | Tray | Tray |
Customers Also Interested in
Recommended Products
S6E2D35G0AGB3000A
Infineon Technologies
S6E2D35G0AGE20000
Infineon Technologies

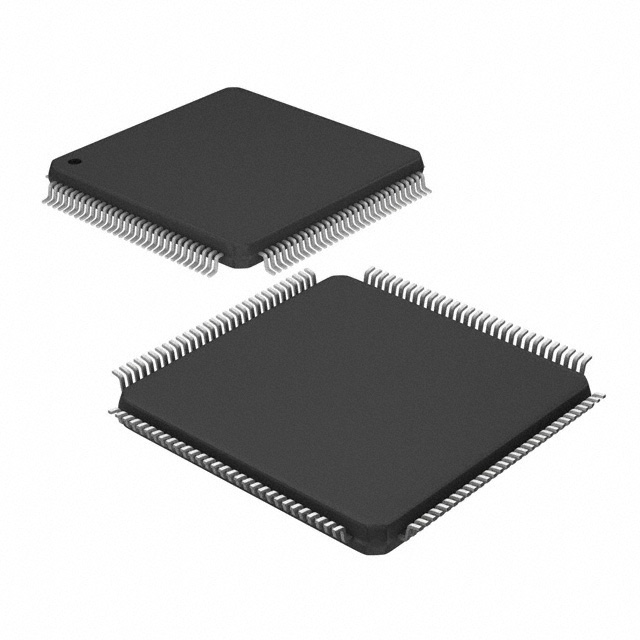

S6E2D35G0AGV20000
Infineon Technologies
S6E2D35GJAMV20000
Infineon Technologies
S6E2D35J0AGV2000A
Infineon Technologies
S6E2D55G0AGB3000A
Infineon Technologies
S6E2D55GJAMV20000
Infineon Technologies

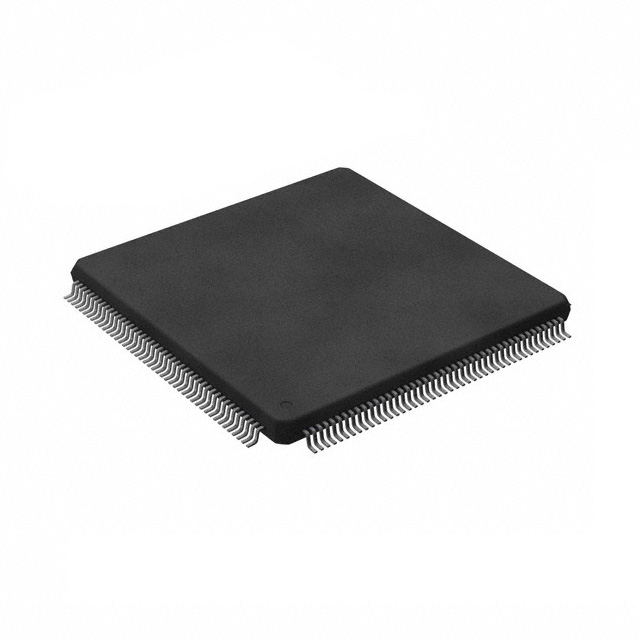

S6E2D55J0AGV2000A
