S8010NRP
lmages are for reference only.S8010NRP
SCR 800V 10A TO263
DatasheetTO-263-3, D2PAK (2 Leads + Tab), TO-263AB
53,463 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
SCR 800 V 10 A Standard Recovery Surface Mount TO-263 (D2PAK)
S8010NRP
| Category | Discrete Semiconductor Products - Thyristors - SCRs |
| Manufacturer | Littelfuse Inc. |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Voltage - Off State | 800 V |
| Voltage - Gate Trigger (Vgt) (Max) | 1.5 V |
| Current - Gate Trigger (Igt) (Max) | 15 mA |
| Current - On State (It (AV)) (Max) | 6.4 A |
| Current - Hold (Ih) (Max) | 30 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 83A, 100A |
| SCR Type | Standard Recovery |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB |
| Supplier Device Package | TO-263 (D2PAK) |
| Voltage - On State (Vtm) (Max) | 1.6 V |
| Current - On State (It (RMS)) (Max) | 10 A |
| Current - Off State (Max) | 10 µA |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

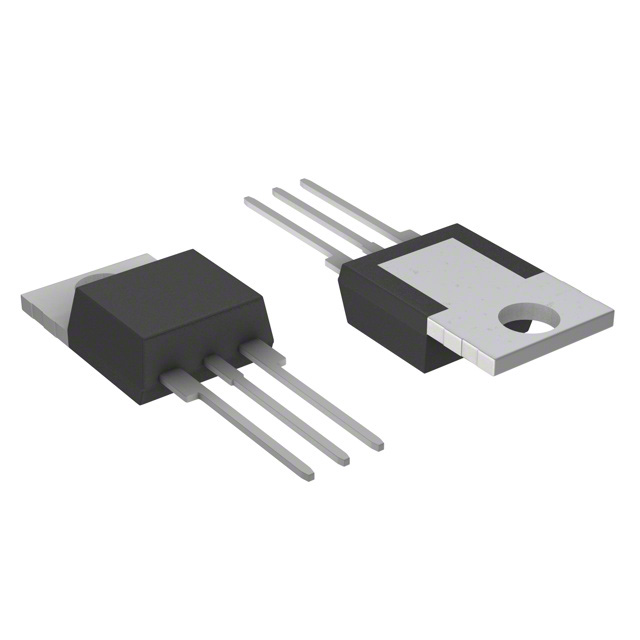

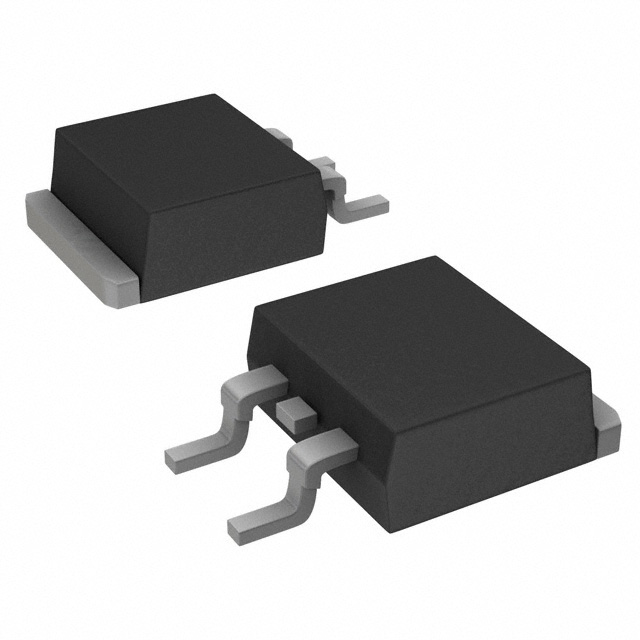

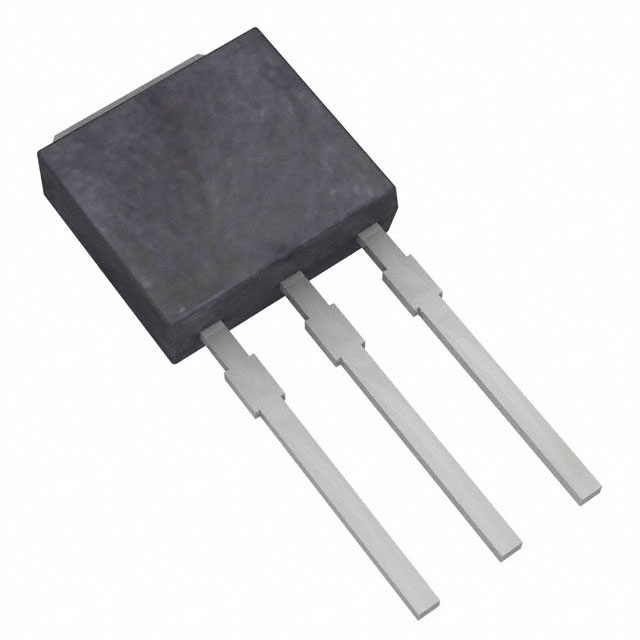

| Part Number | S8010L | S8010NTP | S8010R | S8010V |
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | RoHS non-compliant |
| Description | SCR 800V 10A TO220 | SCR 800V 10A TO263 | SCR 800V 10A TO220 | SCR 800V 10A TO251 |
| Series | - | - | - | - |
| Packaging | Bulk | Tube | Bulk | Bulk |
