S8GS-E3/I

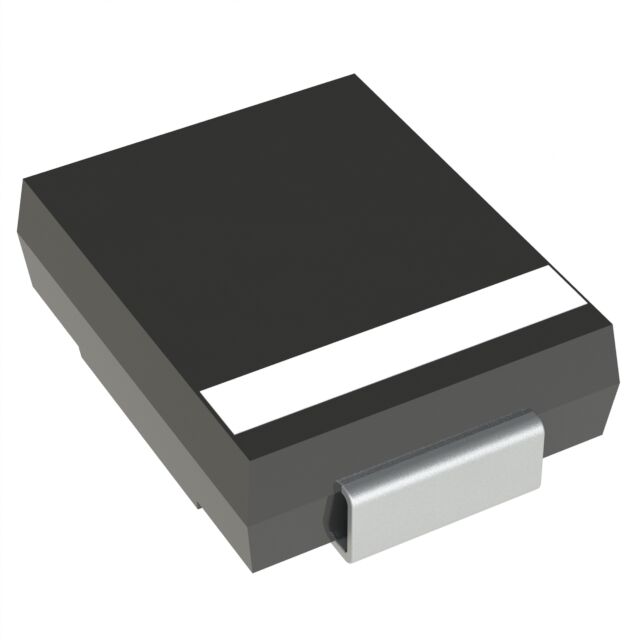

lmages are for reference only.S8GS-E3/I
8A, 400V, STD RECT, SMC
DatasheetDO-214AB, SMC
75,846 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Diode 400 V 8A Surface Mount DO-214AB (SMC)
S8GS-E3/I
| Category | Discrete Semiconductor Products - Diodes - Rectifiers |
| Manufacturer | Vishay General Semiconductor - Diodes Division |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) | 400 V |
| Current - Average Rectified (Io) | 8A |
| Voltage - Forward (Vf) (Max) @ If | 985 mV @ 8 A |
| Speed | Standard Recovery > 500ns, > 2A (Io) |
| Reverse Recovery Time (trr) | 3.4 µs |
| Current - Reverse Leakage @ Vr | 10 µA @ 400 V |
| Capacitance @ Vr, F | 63pF @ 4V, 1MHz |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AB, SMC |
| Supplier Device Package | DO-214AB (SMC) |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Base Product Number | S8G |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
|
| Part Number | S8GS-E3/H | S8G | S8G-E3/H | S8G-E3/I |
| Manufacturer | Vishay | Diotec Semiconductor | Vishay | Vishay General Semiconductor - Diodes Division |
| RoHS Status | ROHS3 Compliant | |||
| Description | 8A, 400V, STD RECT, SMC | DIODE GEN PURP 400V 8A SMC | 8A, 400V, STD RECT, SMC | 8A, 400V, STD RECT, SMC |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR) | Bulk | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
