SA10-11SRWA
lmages are for reference only.SA10-11SRWA
DISPLAY 7SEG 1.02" SGL RED 14DIP
Datasheet14-DIP (0.600", 15.24mm)
78,681 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Display Modules - LED Character and Numeric Red 7-Segment 1 Character Common Anode 3.7V 20mA 1.295" H x 0.886" W x 0.335" D (32.90mm x 22.50mm x 8.50mm) 14-DIP (0.600", 15.24mm)
SA10-11SRWA
| Category | Optoelectronics - LED Character and Numeric - |
| Manufacturer | Kingbright |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Number of Characters | 1 |
| Size / Dimension | 1.295" H x 0.886" W x 0.335" D (32.90mm x 22.50mm x 8.50mm) |
| Digit/Alpha Size | 1.02" (26.00mm) |
| Display Type | 7-Segment |
| Common Pin | Common Anode |
| Color | Red |
| Voltage - Forward (Vf) (Typ) | 3.7V |
| Current - Test | 20mA |
| Millicandela Rating | 120mcd |
| Wavelength - Peak | 660nm |
| Power Dissipation (Max) | 150mW |
| Package / Case | 14-DIP (0.600", 15.24mm) |
| Base Product Number | SA10-11 |
| Display Format | - |
| Product Attribute |  |
|
 |
|

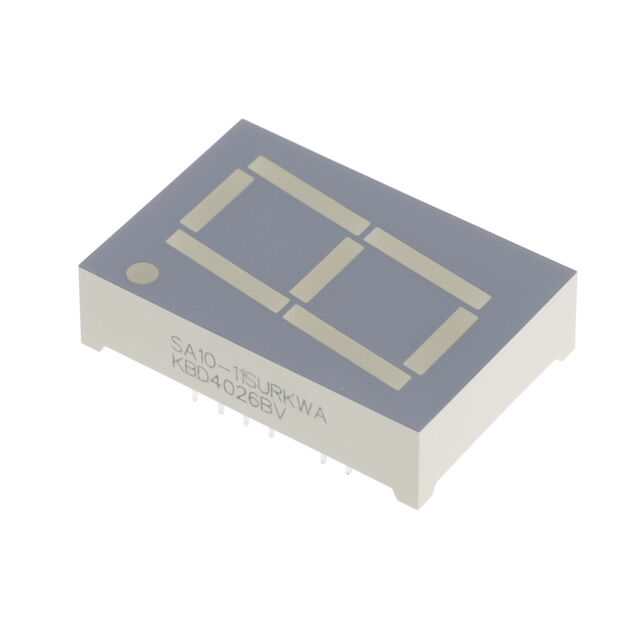

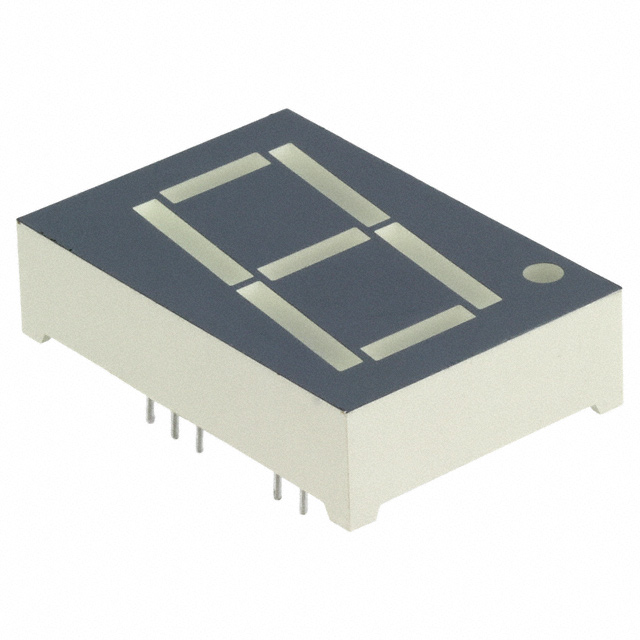

| Part Number | SA10-11SURKWA | SA10-11SYKWA | SA10-11EWA | SA10-11GWA |
| Manufacturer | Kingbright | Kingbright | Kingbright | Kingbright |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DISPLAY 7SEG 1.02" SGL RED 14DIP | DISPLAY 7SEG 1.02" SGL YLW 14DIP | DISPLAY 7SEG 1.02" SGL RED 14DIP | DISPLAY 7SEG 1.02" SGL GRN 14DIP |
| Series | - | - | - | - |
| Packaging | Tube | Tube | Tube | Tube |
