SA23-12EWA
lmages are for reference only.SA23-12EWA
DISPLAY 7SEG 2.24" SGL RED 10DIP
Datasheet10-DIP (2.370", 60.10mm)
28,156 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Display Modules - LED Character and Numeric Red 7-Segment 1 Character Common Anode 8V 20mA 2.756" H x 1.890" W x 0.472" D (70.00mm x 48.00mm x 12.00mm) 10-DIP (2.370", 60.10mm)
SA23-12EWA
| Category | Optoelectronics - LED Character and Numeric - |
| Manufacturer | Kingbright |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Number of Characters | 1 |
| Size / Dimension | 2.756" H x 1.890" W x 0.472" D (70.00mm x 48.00mm x 12.00mm) |
| Digit/Alpha Size | 2.24" (56.90mm) |
| Display Type | 7-Segment |
| Common Pin | Common Anode |
| Color | Red |
| Voltage - Forward (Vf) (Typ) | 8V |
| Current - Test | 20mA |
| Millicandela Rating | 57mcd |
| Wavelength - Peak | 627nm |
| Power Dissipation (Max) | 300mW |
| Package / Case | 10-DIP (2.370", 60.10mm) |
| Base Product Number | SA23-12 |
| Display Format | - |
| Product Attribute | |
 |
 |
 |
| Part Number | SA23-12GWA | SA23-12SRWA | SA23-12SURKWA | SA23-11EWA |
| Manufacturer | Kingbright | Kingbright | Kingbright | Kingbright |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

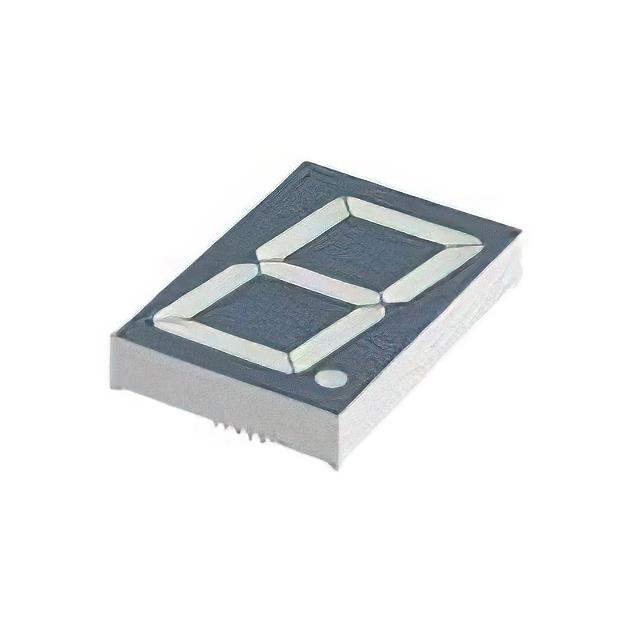

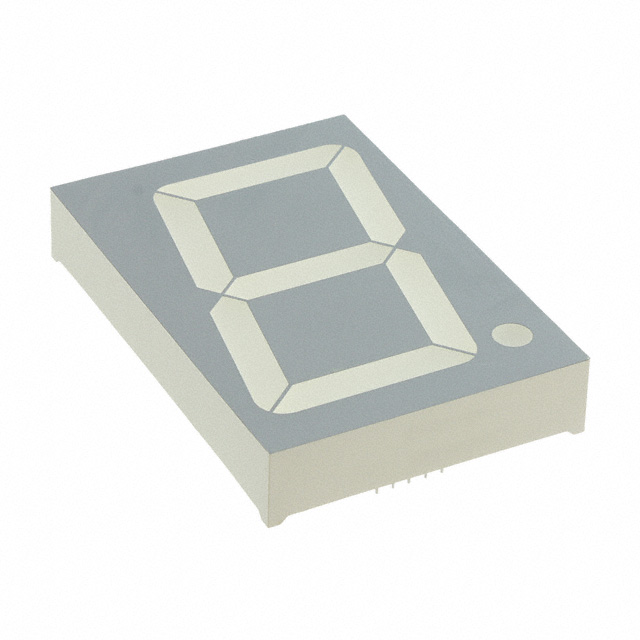

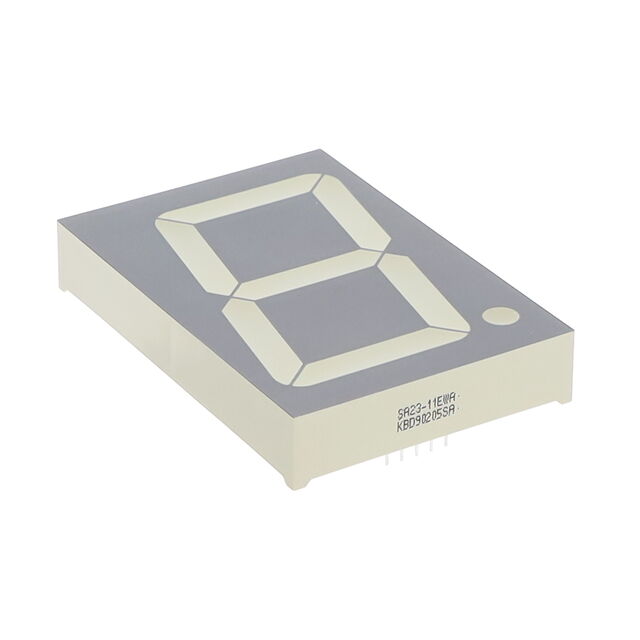

| Description | DISPLAY 7SEG 2.24" SGL GRN 10DIP | DISPLAY 7SEG 2.24" SGL RED 10DIP | 2.3" RED LED DISPLAY | DISPLAY 7SEG 2.24" SGL RED 20DIP |
| Series | - | - | - | - |
| Packaging | Tube | Tube | Bulk | Tube |
