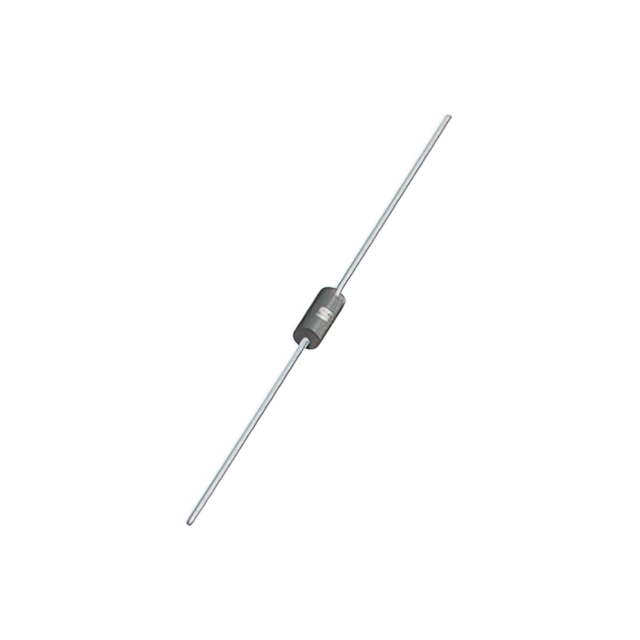

SA75C
lmages are for reference only.SA75C
500W, 95.2V, 10%, BIDIRECTIONAL,
DatasheetDO-204AC, DO-15, Axial
40,818 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
134V Clamp 3.9A Ipp Tvs Diode Through Hole DO-204AC (DO-15)
SA75C
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Taiwan Semiconductor Corporation |
| Series | SA |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 75V |
| Voltage - Breakdown (Min) | 83.3V |
| Voltage - Clamping (Max) @ Ipp | 134V |
| Current - Peak Pulse (10/1000µs) | 3.9A |
| Power - Peak Pulse | 500W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | DO-204AC, DO-15, Axial |
| Supplier Device Package | DO-204AC (DO-15) |
| Base Product Number | SA75 |
| Unidirectional Channels | - |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Product Attribute |  |
 |
|
|

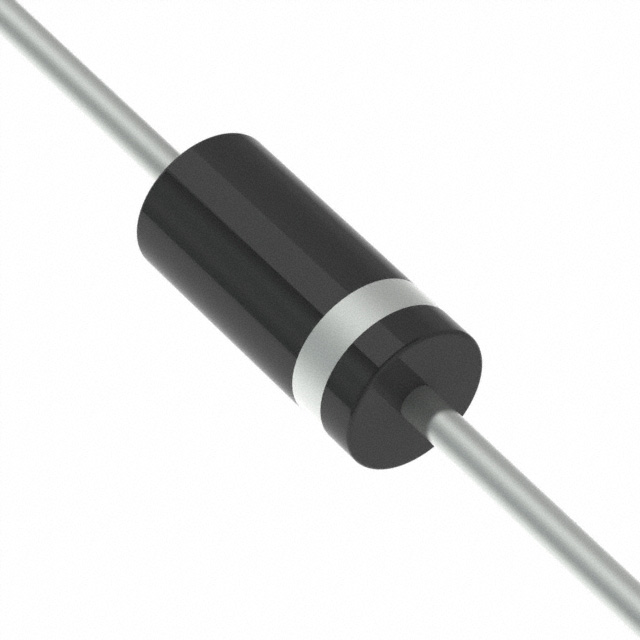

| Part Number | SA75 | SA75A | SA75A | SA75A |
| Manufacturer | Taiwan Semiconductor Corporation | onsemi | Taiwan Semiconductor Corporation | Littelfuse Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | 500W, 95.2V, 10%, UNIDIRECTIONAL | TVS DIODE 75VWM 121VC DO15 | TVS DIODE 75VWM 121VC DO204AC | TVS DIODE 75VWM 121VC DO204AC |
| Series | Taiwan Semiconductor Corporation | onsemi | Taiwan Semiconductor Corporation | Littelfuse Inc. |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
