SAJ101XBL0N74SDTPTQ

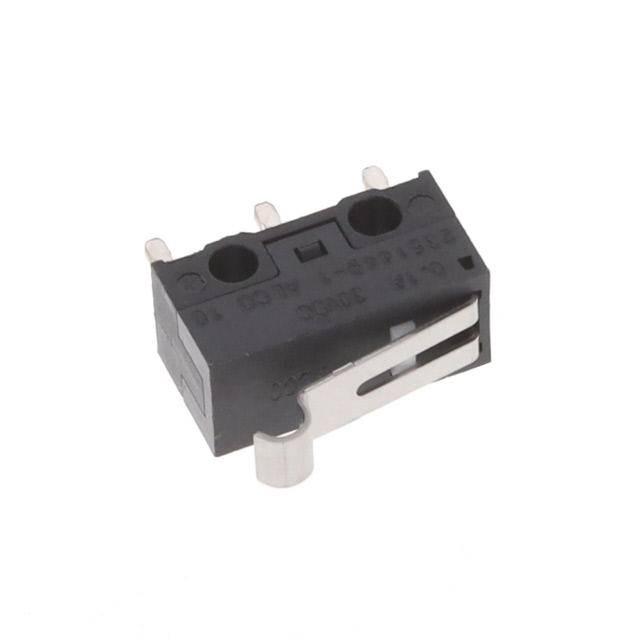

lmages are for reference only.SAJ101XBL0N74SDTPTQ
SWITCH SNAP ACTION SPDT 0.1A 30V
Datasheet-
57,586 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Switch SPDT Through Hole
SAJ101XBL0N74SDTPTQ
| Category | Switches - Limit Switches - |
| Manufacturer | TE Connectivity ALCOSWITCH Switches |
| Series | SAJ1 |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Base Product Number | SAJ101 |
| Circuit | SPDT |
| Switch Function | On-Mom |
| Current Rating (Amps) | 100mA (DC) |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 30 V |
| Actuator Type | Lever, Straight |
| Mounting Type | Through Hole |
| Termination Style | PC Pin |
| Ingress Protection | - |
| Electrical Life | 30,000 Cycles |
| Mechanical Life | 1,000,000 Cycles |
| Features | - |
| Operating Force | 26gf |
| Release Force | 2.000gf |
| Operating Position | 0.378" (9.6mm) |
| Pretravel | 0.087" (2.2mm) |
| Differential Travel | 0.020" (0.5mm) |
| Overtravel | 0.022" (0.55mm) |
| Operating Temperature | -25°C ~ 75°C |
| Product Attribute |  |
 |
 |
 |

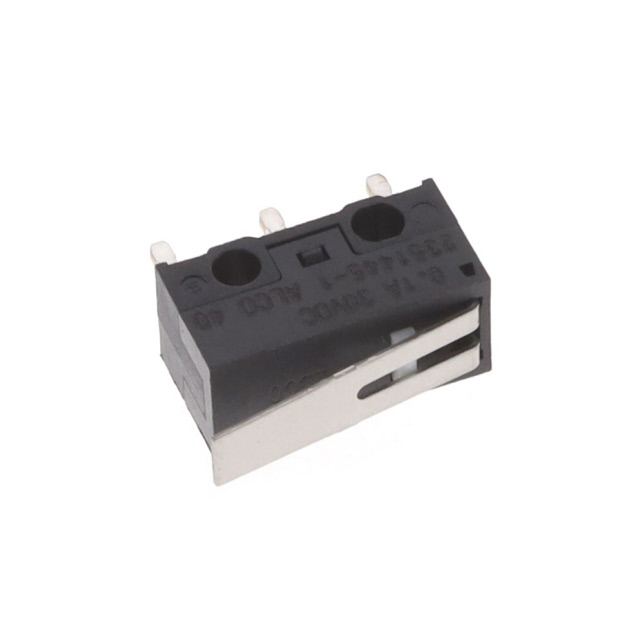

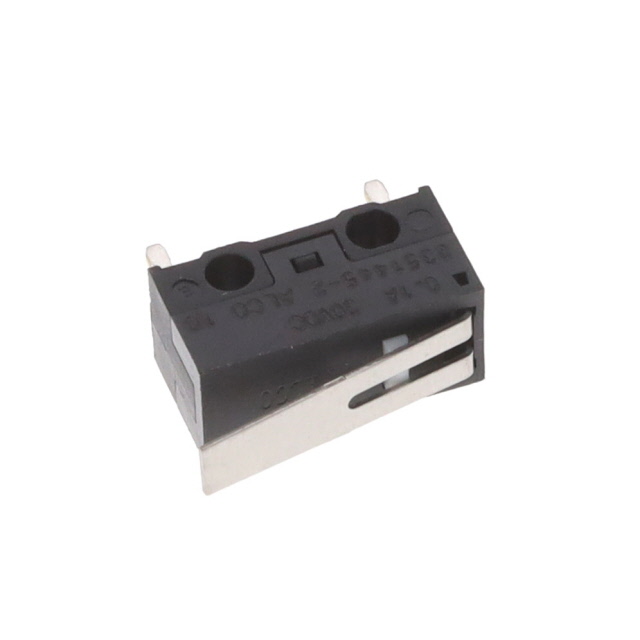

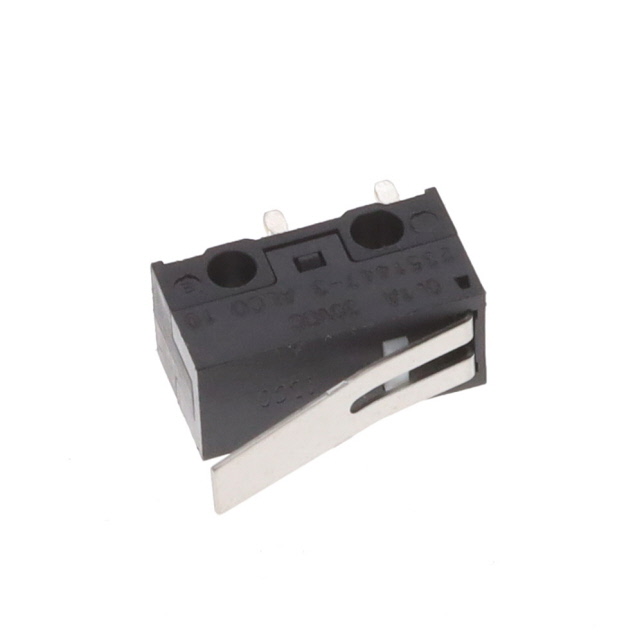

| Part Number | SAJ101XBL0N74SNCPTQ | SAJ101XBL0N74SNOPTQ | SAJ101XHL0N74SDTPTQ | SAJ101XHL0N74SNCPTQ |
| Manufacturer | TE Connectivity ALCOSWITCH Switches | TE Connectivity ALCOSWITCH Switches | TE Connectivity ALCOSWITCH Switches | TE Connectivity ALCOSWITCH Switches |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | SWITCH SNAP ACT SPST-NC 0.1A 30V | SWITCH SNAP ACT SPST-NO 0.1A 30V | SWITCH SNAP ACTION SPDT 0.1A 30V | SWITCH SNAP ACT SPST-NC 0.1A 30V |
| Series | SAJ1 | SAJ1 | SAJ1 | SAJ1 |
| Packaging | Bulk | Bulk | Bulk | Bulk |
