Product CatalogPart Number
SB340
Manufacturer
Diotec SemiconductorDescription
DIODE SCHOTTKY 40V 3A DO201
Datasheet
DatasheetPackage
DO-201AA, DO-27, Axial
In Stock
35,675 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
SB340
SB340
lmages are for reference only.Payment Methods
Delivery Services
Diode 40 V 3A Through Hole DO-201
Quick Inquiry
SB340
Specifications
| Category | Discrete Semiconductor Products - Diodes - Rectifiers |
| Manufacturer | Diotec Semiconductor |
| Series | - |
| Packaging | Cut Tape (CT)-->Tape & Box (TB) |
| RoHS Status | Not applicable |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 40 V |
| Current - Average Rectified (Io) | 3A |
| Voltage - Forward (Vf) (Max) @ If | 490 mV @ 3 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - |
| Current - Reverse Leakage @ Vr | 500 µA @ 40 V |
| Capacitance @ Vr, F | - |
| Mounting Type | Through Hole |
| Package / Case | DO-201AA, DO-27, Axial |
| Supplier Device Package | DO-201 |
| Operating Temperature - Junction | -50°C ~ 150°C |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute | |
|
 |
 |
| Part Number | SB340 | SB340 | SB340-E3/54 | SB340-E3/73 |
| Manufacturer | SMC Diode Solutions | onsemi | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DIODE SCHOTTKY 40V 3A DO201AD | DIODE SCHOTTKY 40V 3A DO201AD | DIODE SCHOTTKY 40V 3A DO201AD | DIODE SCHOTTKY 40V 3A DO201AD |
| Series | - | - | - | - |
| Packaging | Tape & Box (TB) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Cut Tape (CT)-->Tape & Box (TB) |
Customers Also Interested in
Recommended Products
SB340
SMC Diode Solutions
SB340
onsemi

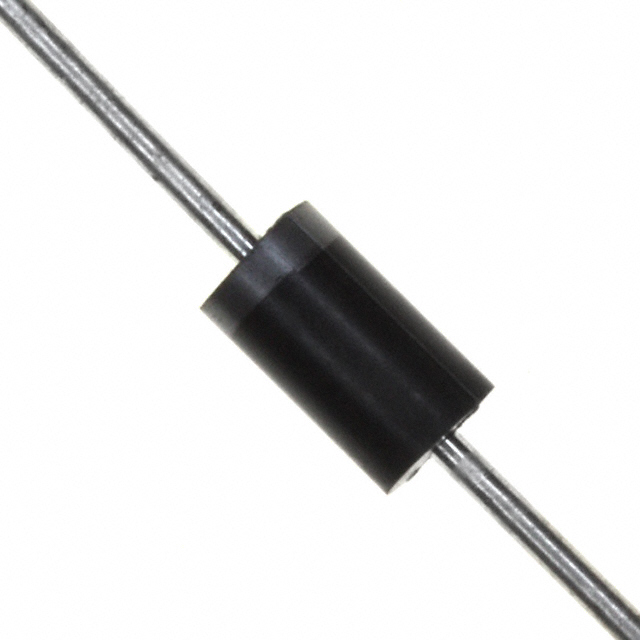

SB340-E3/54
Vishay General Semiconductor - Diodes Division
SB340-E3/73
Vishay General Semiconductor - Diodes Division

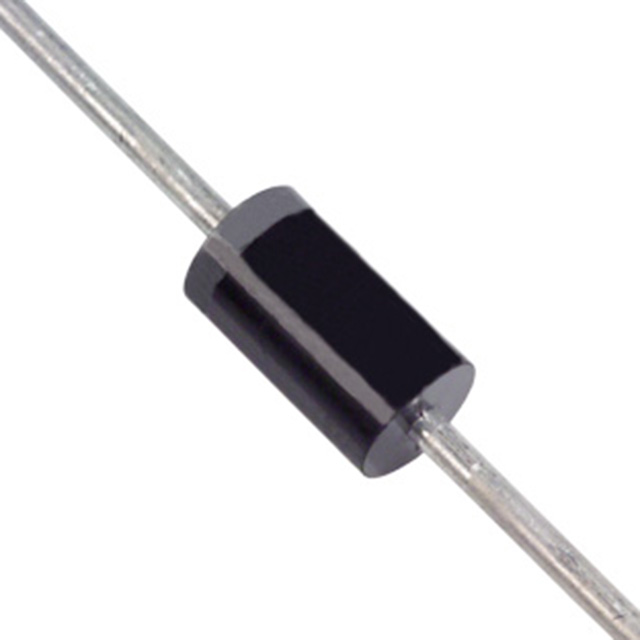

SB340-T
