SBCHE1115KJ

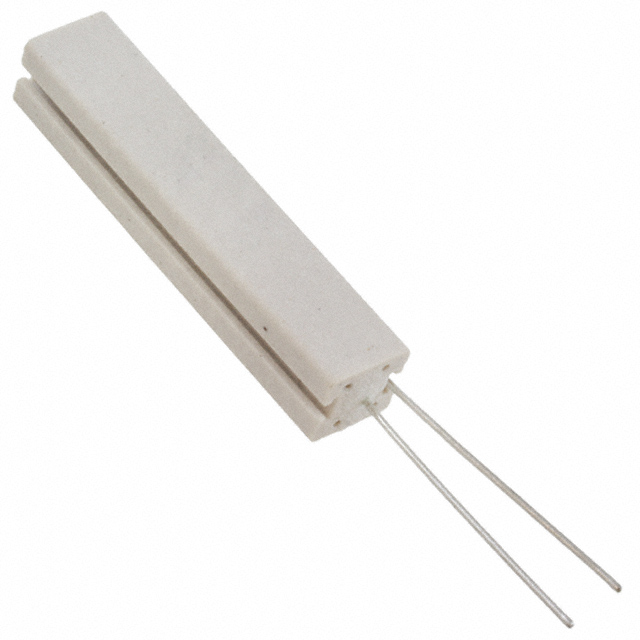

lmages are for reference only.SBCHE1115KJ
RES 15K OHM 5% 11W AXIAL
DatasheetAxial, Radial Formed
21,185 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
15 kOhms ±5% 11W Through Hole Resistor Axial, Radial Formed Flame Proof, Safety Wirewound
SBCHE1115KJ
| Category | Resistors - Through Hole Resistors - |
| Manufacturer | TE Connectivity Passive Product |
| Series | SBC, CGS |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Resistance | 15 kOhms |
| Tolerance | ±5% |
| Power (Watts) | 11W |
| Composition | Wirewound |
| Features | Flame Proof, Safety |
| Temperature Coefficient | ±200ppm/°C |
| Operating Temperature | -55°C ~ 350°C |
| Package / Case | Axial, Radial Formed |
| Supplier Device Package | - |
| Size / Dimension | 0.394" x 0.354" Rectangular x 1.969" L (10.00mm x 9.00mm x 50.00mm) |
| Height - Seated (Max) | - |
| Number of Terminations | 2 |
| Failure Rate | - |
| Base Product Number | SBCHE11 |
| Product Attribute |  |
 |
 |
 |
| Part Number | SBCHE11100RJ | SBCHE1110KJ | SBCHE1110RJ | SBCHE11150RJ |
| Manufacturer | TE Connectivity Passive Product | TE Connectivity Passive Product | TE Connectivity Passive Product | TE Connectivity Passive Product |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RES 100 OHM 5% 11W AXIAL | RES 10K OHM 5% 11W AXIAL | RES 10 OHM 5% 11W AXIAL | RES 150 OHM 5% 11W AXIAL |
| Series | TE Connectivity Passive Product | TE Connectivity Passive Product | TE Connectivity Passive Product | TE Connectivity Passive Product |
| Packaging | Bulk | Bulk | Bulk | Bulk |
