SBSMP5000102MXR
lmages are for reference only.SBSMP5000102MXR
SURFACE MOUNT C AND PI FILTER
Datasheet2220 (5750 Metric), 3 PC Pad
33,229 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
LC (Pi) EMI Filter 3rd Order Low Pass 1 Channel C = 1000pF 20 A 2220 (5750 Metric), 3 PC Pad
SBSMP5000102MXR
| Category | Filters - EMI-RFI Filters LC-RC Networks - |
| Manufacturer | Knowles Syfer |
| Series | SBSM |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Low Pass |
| Filter Order | 3rd |
| Technology | LC (Pi) |
| Center / Cutoff Frequency | - |
| Attenuation Value | - |
| Resistance - Channel (Ohms) | - |
| Current | 20 A |
| Values | C = 1000pF |
| ESD Protection | No |
| Operating Temperature | -55°C ~ 125°C |
| Applications | General Purpose |
| Voltage - Rated | 500V |
| Mounting Type | Surface Mount |
| Package / Case | 2220 (5750 Metric), 3 PC Pad |
| Size / Dimension | 0.224" L x 0.197" W (5.70mm x 5.00mm) |
| Height | 0.133" (3.38mm) |
| Number of Channels | 1 |
| Base Product Number | SBSMP |
| Grade | - |
| Qualification | - |
| Product Attribute | |
 |
|
 |

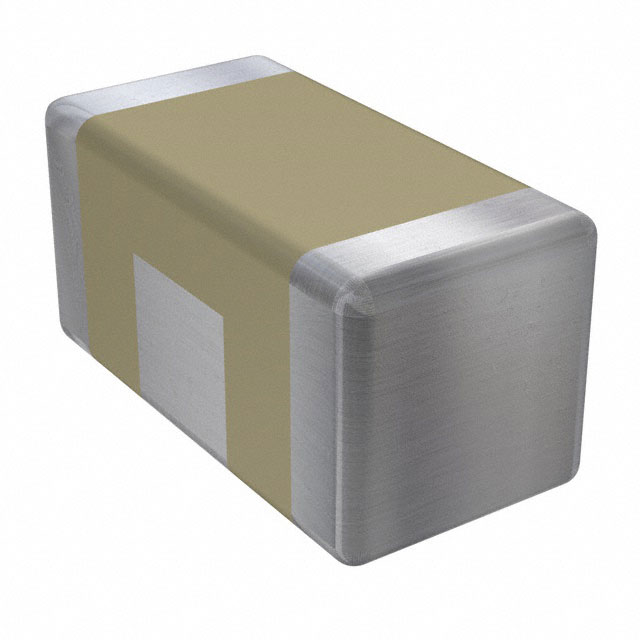

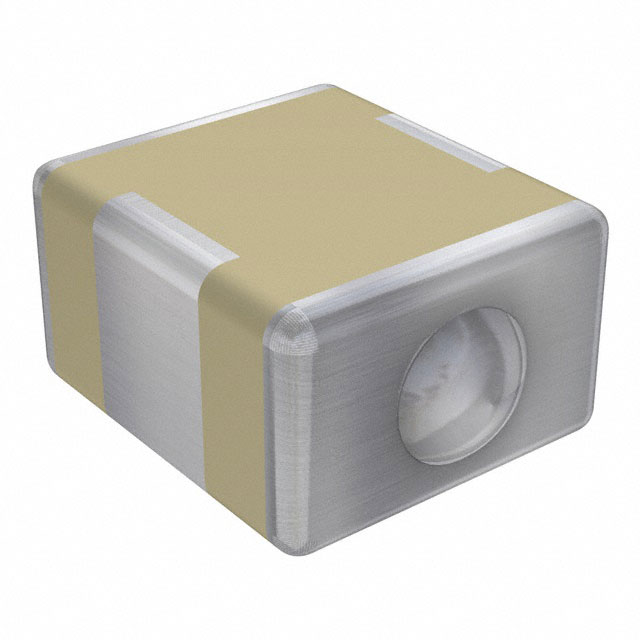

| Part Number | SBSMP5000102MXR | SBSMP5000102MXT | SBSMP5000102MXT | SBSMP5000103MXT |
| Manufacturer | Knowles Syfer | Knowles Syfer | Knowles Syfer | Knowles Syfer |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | SURFACE MOUNT C AND PI FILTER | FILTER LC(PI) 1000PF SMD | FILTER LC(PI) 1000PF SMD | SURFACE MOUNT C AND PI FILTER |
| Series | SBSM | SBSM | SBSM | SBSM |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
