SC03-12HDB
lmages are for reference only.SC03-12HDB
DISPLAY 7-SEG 0.3" SGL RED 14DIP
Datasheet14-DIP (0.300", 7.62mm)
23,982 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Display Modules - LED Character and Numeric Red 7-Segment 1 Character Common Cathode 2.5V 20mA 0.750" H x 0.400" W x 0.240" D (19.06mm x 10.16mm x 6.10mm) 14-DIP (0.300", 7.62mm)
SC03-12HDB
| Category | Optoelectronics - LED Character and Numeric - |
| Manufacturer | Kingbright |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Number of Characters | 1 |
| Size / Dimension | 0.750" H x 0.400" W x 0.240" D (19.06mm x 10.16mm x 6.10mm) |
| Digit/Alpha Size | 0.30" (7.62mm) |
| Display Type | 7-Segment |
| Common Pin | Common Cathode |
| Color | Red |
| Voltage - Forward (Vf) (Typ) | 2.5V |
| Current - Test | 20mA |
| Millicandela Rating | - |
| Wavelength - Peak | 700nm |
| Power Dissipation (Max) | 120mW |
| Package / Case | 14-DIP (0.300", 7.62mm) |
| Base Product Number | SC03-12 |
| Display Format | - |
| Product Attribute | |
 |
 |
 |

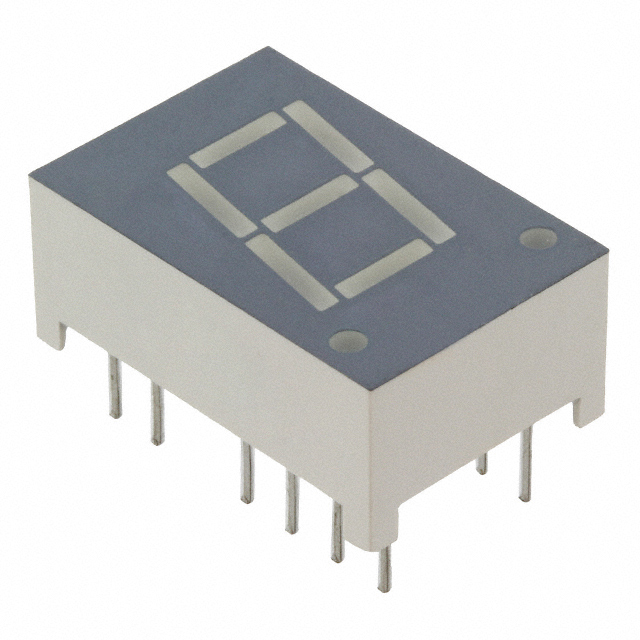

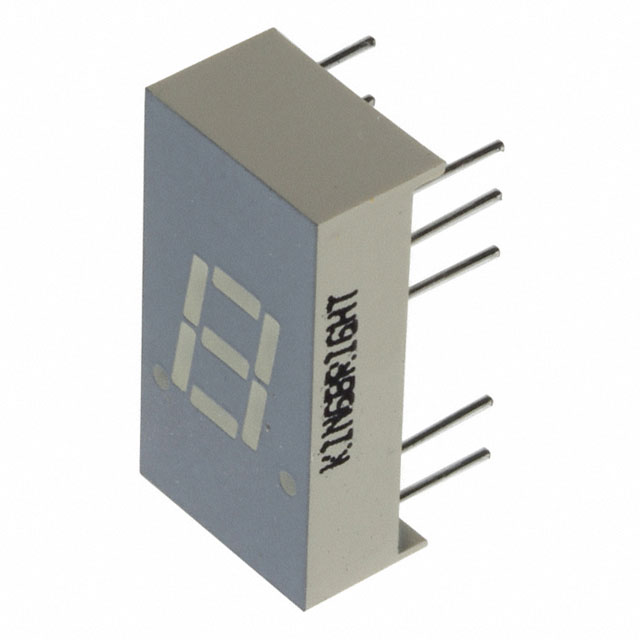

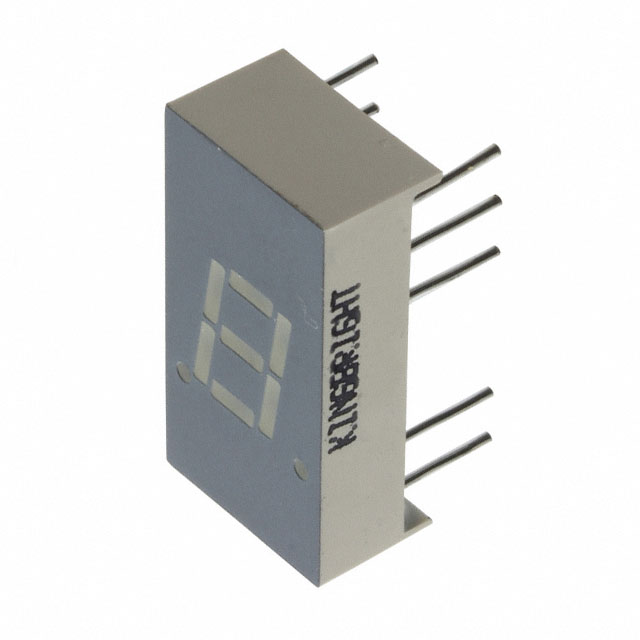

| Part Number | SC03-12CGKWA | SC03-12EWA | SC03-12GWA | SC03-12SRWA |
| Manufacturer | Kingbright | Kingbright | Kingbright | Kingbright |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DISPLAY 7SEG 0.3" SGL GRN 14DIP | DISPLAY 7-SEG 0.3" SGL RED 14DIP | DISPLAY 7SEG 0.3" SGL GRN 14DIP | DISPLAY 7-SEG 0.3" SGL RED 14DIP |
| Series | - | - | - | - |
| Packaging | Tube | Tube | Tube | Tube |
