SC30R18KT

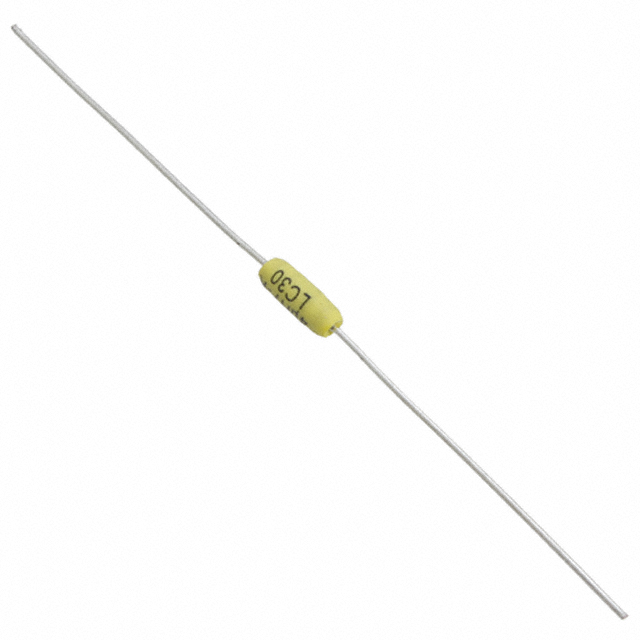

lmages are for reference only.SC30R18KT
FIXED IND 180NH 1.21A 120MOHM TH
DatasheetAxial
14,877 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
180 nH Shielded Inductor 1.21 A 120mOhm Max Axial
SC30R18KT
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | TE Connectivity Passive Product |
| Series | SC30, Sigma Inductors |
| Packaging | Tape & Box (TB) |
| RoHS Status | ROHS3 Compliant |
| Type | - |
| Material - Core | - |
| Inductance | 180 nH |
| Tolerance | ±10% |
| Current Rating (Amps) | 1.21 A |
| Current - Saturation (Isat) | - |
| Shielding | Shielded |
| DC Resistance (DCR) | 120mOhm Max |
| Q @ Freq | 35 @ 25MHz |
| Frequency - Self Resonant | 550MHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 100°C |
| Inductance Frequency - Test | 25 MHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Axial |
| Supplier Device Package | - |
| Size / Dimension | 0.165" Dia x 0.394" L (4.20mm x 10.00mm) |
| Height - Seated (Max) | - |
| Base Product Number | SC30 |
| Product Attribute |  |
|
|
 |
| Part Number | SC30R10KT | SC30R12KT | SC30R15KT | SC30100KT |
| Manufacturer | TE Connectivity Passive Product | TE Connectivity Passive Product | TE Connectivity Passive Product | TE Connectivity Passive Product |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 100NH 1.49A 80 MOHM TH | FIXED IND 120NH 1.4A 90 MOHM TH | FIXED IND 150NH 1.33A 100MOHM TH | FIXED IND 10UH 219MA 3.7 OHM TH |
| Series | TE Connectivity Passive Product | TE Connectivity Passive Product | TE Connectivity Passive Product | TE Connectivity Passive Product |
| Packaging | Tape & Box (TB) | Tape & Box (TB) | Tape & Box (TB) | Cut Tape (CT)-->Tape & Box (TB) |
