SC4211HSTRT
lmages are for reference only.SC4211HSTRT
IC REG LIN POS ADJ 1A 8SOIC
Datasheet8-SOIC (0.154", 3.90mm Width) Exposed Pad
68,025 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Linear Voltage Regulator IC Positive Adjustable (Fixed) 1 Output 1A 8-SOIC, EDP
SC4211HSTRT
| Category | Integrated Circuits (ICs) - Power Management PMIC - Voltage Regulators Linear-Low Drop Out LDO Regulators |
| Manufacturer | Semtech Corporation |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | RoHS Compliant |
| Output Configuration | Positive |
| Output Type | Adjustable (Fixed) |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 0.5V |
| Voltage - Output (Max) | 5.5V |
| Voltage Dropout (Max) | 0.5V @ 1A |
| Current - Output | 1A |
| Current - Quiescent (Iq) | 50 µA |
| PSRR | - |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Reverse Polarity |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) Exposed Pad |
| Supplier Device Package | 8-SOIC, EDP |
| Base Product Number | SC4211 |
| Current - Supply (Max) | 3 mA |
| Product Attribute |  |
 |
 |
 |

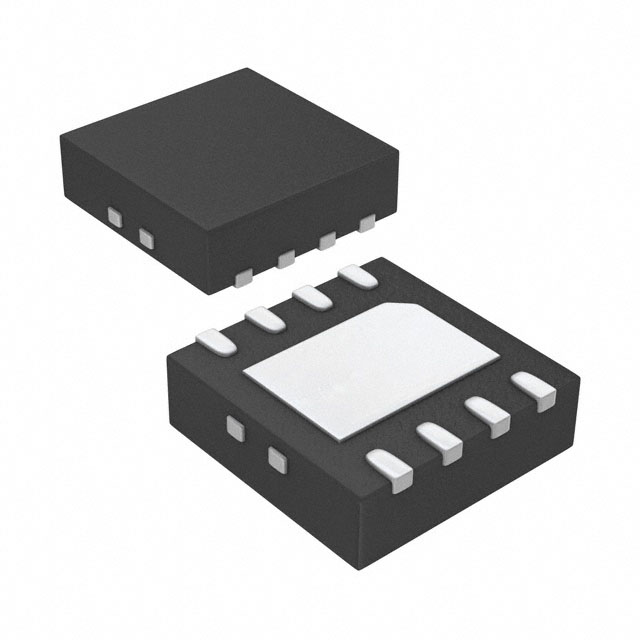

| Part Number | SC4211STRT | SC4212BMLTRC | SC4212LMLTRC | SC4212MLTRT |
| Manufacturer | Semtech Corporation | Semtech Corporation | Semtech Corporation | Semtech Corporation |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | |
| Description | IC REG LIN POS ADJ 1A 8SOIC | IC REG LIN POS ADJ 1A 8MLPD | IC REG LIN POS ADJ 1A 8MLPD | IC REG LIN POS ADJ 1A 8MLPD |
| Series | Semtech Corporation | Semtech Corporation | Semtech Corporation | Semtech Corporation |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
