SCD684K122A3Z25-F
lmages are for reference only.SCD684K122A3Z25-F
CAP FILM 0.68UF 1.2KVDC SCREW
DatasheetRectangular Box
68,951 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
0.68 µF Film Capacitor 580V 1200V (1.2kV) Polypropylene (PP), Metallized Rectangular Box
SCD684K122A3Z25-F
| Category | Capacitors - Film Capacitors - |
| Manufacturer | Cornell Dubilier Knowles |
| Series | SCD |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 0.68 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | 580V |
| Voltage Rating - DC | 1200V (1.2kV) |
| Dielectric Material | Polypropylene (PP), Metallized |
| Operating Temperature | -55°C ~ 85°C |
| Mounting Type | Chassis Mount |
| Package / Case | Rectangular Box |
| Size / Dimension | 1.776" L x 1.272" W (45.10mm x 32.30mm) |
| Height - Seated (Max) | 1.402" (35.60mm) |
| Termination | Screw Terminals |
| Lead Spacing | 1.000" (25.40mm) |
| Applications | Snubber |
| Ratings | - |
| Features | - |
| ESR (Equivalent Series Resistance) | 7 mOhms |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | SCD684K102A3Z25-F | SCD684K102D3Z25-F | SCD684K162A3Z25-F | SCD684K202A3Z25-F |
| Manufacturer | Cornell Dubilier Knowles | Cornell Dubilier Knowles | Cornell Dubilier Knowles | Cornell Dubilier Knowles |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

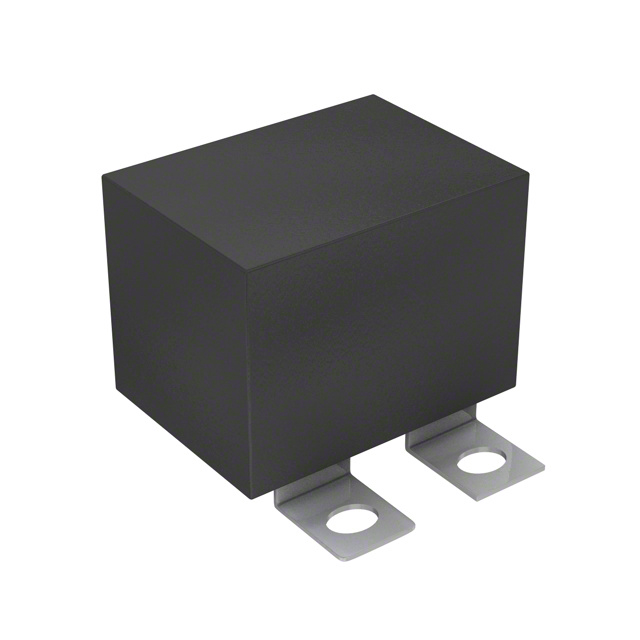

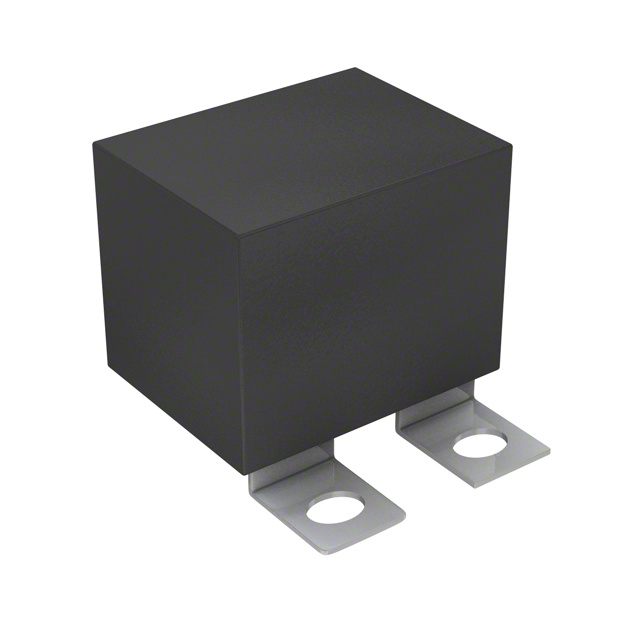

| Description | CAP FILM 0.68UF 10% 1KVDC SCREW | CAP FILM 0.68UF 10% 1KVDC SCREW | CAP FILM 0.68UF 1.6KVDC SCREW | CAP FILM 0.68UF 10% 2KVDC SCREW |
| Series | Cornell Dubilier Knowles | Cornell Dubilier Knowles | Cornell Dubilier Knowles | Cornell Dubilier Knowles |
| Packaging | Bulk | Bulk | Bulk | Bulk |
