SCM2012FS900MDG
lmages are for reference only.SCM2012FS900MDG
FLTR,CM,90,M,0.35,330MA,2KPC,HF
DatasheetHorizontal, 4 PC Pad
89,790 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
2 Line Common Mode Choke Surface Mount 90 Ohms @ 100 MHz 330mA DCR 350mOhm
SCM2012FS900MDG
| Category | Filters - Common Mode Chokes - |
| Manufacturer | INPAQ Technology Co., Ltd |
| Series | SCM2012FS |
| Packaging | Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Filter Type | Signal Line |
| Number of Lines | 2 |
| Inductance @ Frequency | - |
| Current Rating (Max) | 330mA |
| DC Resistance (DCR) (Max) | 350mOhm |
| Voltage Rating - DC | 50V |
| Voltage Rating - AC | - |
| Operating Temperature | -25°C ~ 125°C |
| Ratings | - |
| Approval Agency | - |
| Features | - |
| Mounting Type | Surface Mount |
| Size / Dimension | 0.079" L x 0.047" W (2.00mm x 1.20mm) |
| Height (Max) | 0.055" (1.40mm) |
| Package / Case | Horizontal, 4 PC Pad |
| Base Product Number | - |
| Impedance @ Frequency | 90 Ohms @ 100 MHz |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

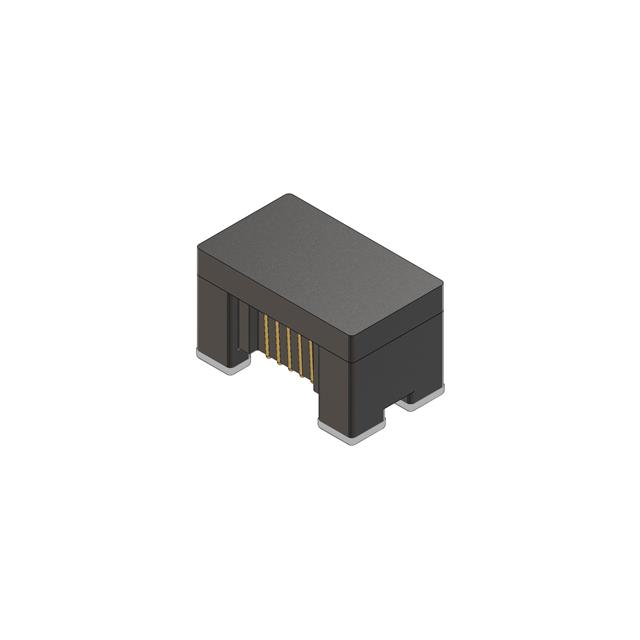

| Part Number | SCM2012FS121MDG | SCM2012FS181MDG | SCM2012FS670MDG | SCM2012FS751MDG |
| Manufacturer | INPAQ Technology Co., Ltd | INPAQ Technology Co., Ltd | INPAQ Technology Co., Ltd | INPAQ Technology Co., Ltd |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FLTR,CM,120,M,0.30,370MA,2KPC,HF | FLTR,CM,180,M,0.35,330MA,2KPC,HF | FLTR,CM,67,M,0.25,400MA,2KPC,HF | FLTR,CM,750,M,0.9,220MA,2KPC,HF |
| Series | SCM2012FS | SCM2012FS | SCM2012FS | SCM2012FS |
| Packaging | Cut Tape (CT) | Cut Tape (CT) | Cut Tape (CT) | Cut Tape (CT) |
