SCX100AN

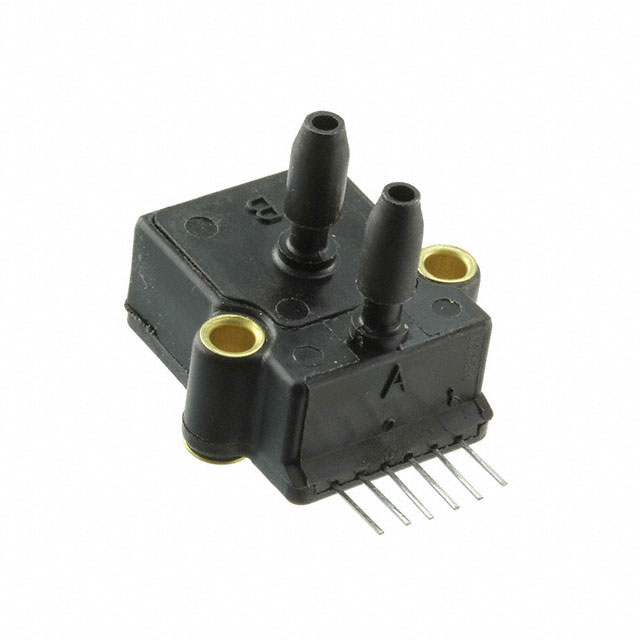

lmages are for reference only.SCX100AN
SENSOR 100PSIA 0.19" 0.1V
Datasheet6-SIP Module
27,264 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Pressure Sensor 100PSI (689.48kPa) Absolute Male - 0.19" (4.8mm) Tube 0 mV ~ 100 mV (12V) 6-SIP Module
SCX100AN
| Category | Sensors, Transducers - Pressure Sensors-Transducers - |
| Manufacturer | Honeywell Sensing and Productivity Solutions |
| Series | SCX |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Base Product Number | SCX100 |
| Applications | Board Mount |
| Pressure Type | Absolute |
| Operating Pressure | 100PSI (689.48kPa) |
| Output Type | Wheatstone Bridge |
| Output | 0 mV ~ 100 mV (12V) |
| Accuracy | ±1% |
| Voltage - Supply | 20V |
| Port Size | Male - 0.19" (4.8mm) Tube |
| Port Style | Barbed |
| Features | Temperature Compensated |
| Termination Style | PC Pin |
| Maximum Pressure | 150PSI (1034.21kPa) |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | 6-SIP Module |
| Supplier Device Package | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
 |
|
| Part Number | SCX100DN | SCX100DN | SCX100DN-90 | SCX100DN-90 |
| Manufacturer | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS non-compliant | RoHS non-compliant |
| Description | SENSOR 100PSID 0.19" 0.1V | SENSOR 100PSID 0.19" 0.1V | SENSOR TEMP COMP 100PSID 90 DEG | SENSOR TEMP COMP 100PSID 90 DEG |
| Series | SCX | SCX | - | - |
| Packaging | Bulk | Bulk | Bulk | Bulk |
