Product CatalogPart Number
SCX114-4R7
Manufacturer
Signal TransformerDescription
INDUCT ARRAY 2 COIL 4.7UH SMD
Datasheet
DatasheetPackage
Nonstandard
In Stock
29,880 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
SCX114-4R7
SCX114-4R7
lmages are for reference only.Payment Methods
Delivery Services

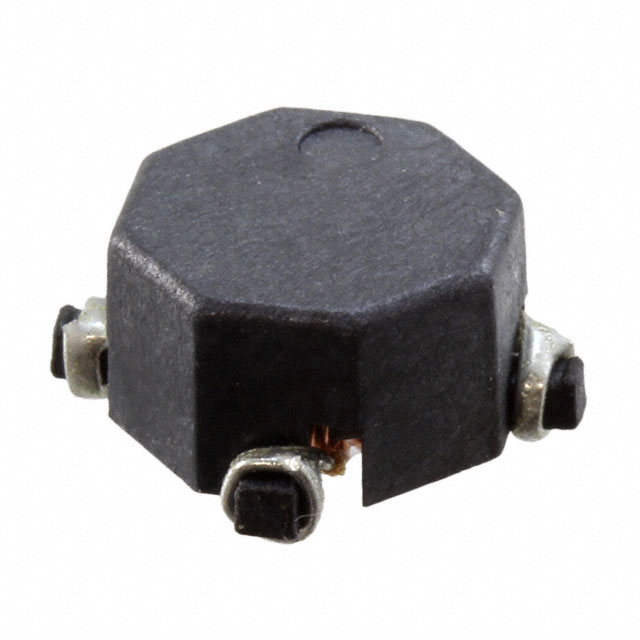

Unshielded 2 Coil Inductor Array 18.8 µH Inductance - Connected in Series 4.7 µH Inductance - Connected in Parallel 41mOhm Max DC Resistance (DCR) - Parallel 2 A Nonstandard
Quick Inquiry
SCX114-4R7
Specifications
| Category | Inductors, Coils, Chokes - Arrays-Signal Transformers - |
| Manufacturer | Signal Transformer |
| Series | SCX114 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Number of Coils | 2 |
| Inductance - Connected In Parallel | 4.7 µH |
| Inductance - Connected In Series | 18.8 µH |
| Tolerance | ±20% |
| Current Rating - Parallel | 2 A |
| Current Rating - Series | 1 A |
| Current Saturation - Parallel | - |
| Current Saturation - Series | - |
| DC Resistance (DCR) - Parallel | 41mOhm Max |
| DC Resistance (DCR) - Series | 161mOhm Max |
| Shielding | Unshielded |
| Ratings | - |
| Operating Temperature | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Size / Dimension | 0.461" L x 0.461" W (11.70mm x 11.70mm) |
| Height | 0.217" (5.50mm) |
| Base Product Number | - |
