SCX147-500
Manufacturer
Signal TransformerDescription
INDUCT ARRAY 2 COIL 50UH SMD
Datasheet
DatasheetPackage
Nonstandard
In Stock
35,307 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation

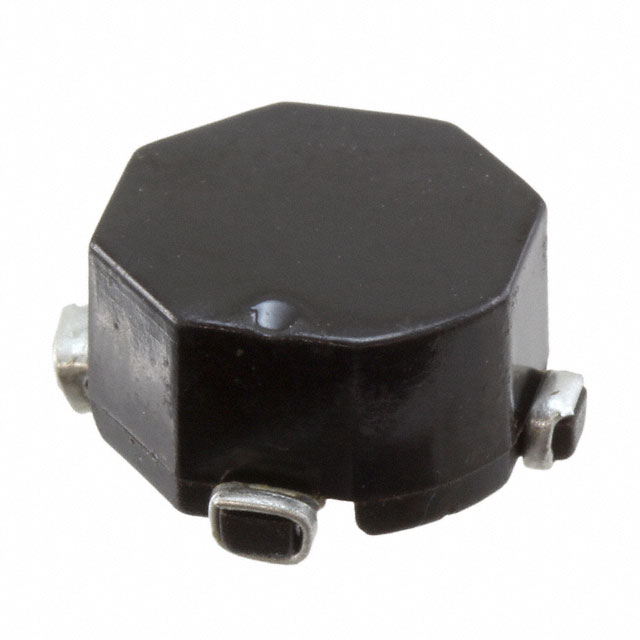

SCX147-500
SCX147-500
lmages are for reference only.Payment Methods
Delivery Services
Unshielded 2 Coil Inductor Array 200.7 µH Inductance - Connected in Series 50 µH Inductance - Connected in Parallel 111mOhm Max DC Resistance (DCR) - Parallel 1.5 A Nonstandard
Quick Inquiry
SCX147-500
Specifications
| Category | Inductors, Coils, Chokes - Arrays-Signal Transformers - |
| Manufacturer | Signal Transformer |
| Series | SCX147 |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Number of Coils | 2 |
| Inductance - Connected In Parallel | 50 µH |
| Inductance - Connected In Series | 200.7 µH |
| Tolerance | ±20% |
| Current Rating - Parallel | 1.5 A |
| Current Rating - Series | 750 mA |
| Current Saturation - Parallel | - |
| Current Saturation - Series | - |
| DC Resistance (DCR) - Parallel | 111mOhm Max |
| DC Resistance (DCR) - Series | 444mOhm Max |
| Shielding | Unshielded |
| Ratings | - |
| Operating Temperature | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Size / Dimension | 0.567" L x 0.567" W (14.40mm x 14.40mm) |
| Height | 0.276" (7.00mm) |
| Base Product Number | - |
