SCX30AN
lmages are for reference only.SCX30AN
SENSOR 30PSIA 0.19" .09V
Datasheet6-SIP Module
17,646 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Pressure Sensor 30PSI (206.84kPa) Absolute Male - 0.19" (4.8mm) Tube 0 mV ~ 90 mV (12V) 6-SIP Module
SCX30AN
| Category | Sensors, Transducers - Pressure Sensors-Transducers - |
| Manufacturer | Honeywell Sensing and Productivity Solutions |
| Series | SCX |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Base Product Number | SCX30 |
| Applications | Board Mount |
| Pressure Type | Absolute |
| Operating Pressure | 30PSI (206.84kPa) |
| Output Type | Wheatstone Bridge |
| Output | 0 mV ~ 90 mV (12V) |
| Accuracy | ±1% |
| Voltage - Supply | 20V |
| Port Size | Male - 0.19" (4.8mm) Tube |
| Port Style | Barbed |
| Features | Temperature Compensated |
| Termination Style | PC Pin |
| Maximum Pressure | 60PSI (413.69kPa) |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | 6-SIP Module |
| Supplier Device Package | - |
| Grade | - |
| Qualification | - |
| Product Attribute | |
 |
|
 |

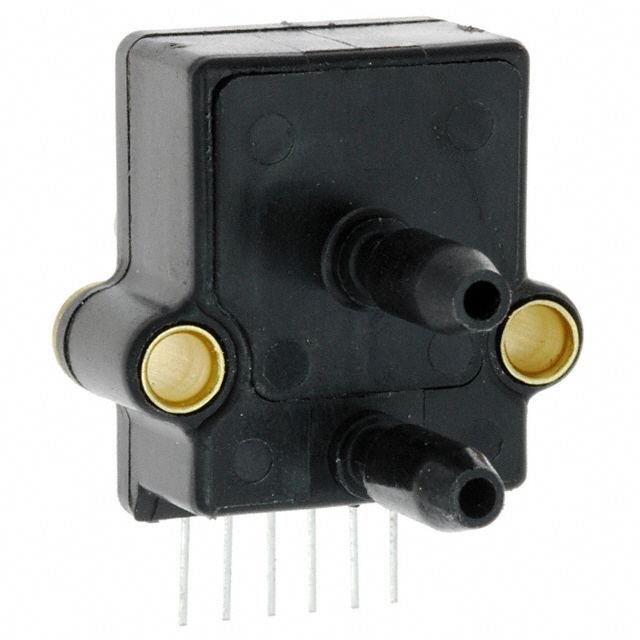

| Part Number | SCX30AN | SCX30ANC | SCX30ANC | SCX30DN |
| Manufacturer | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions |
| RoHS Status | RoHS Compliant | RoHS non-compliant | RoHS non-compliant | RoHS Compliant |
| Description | SENSOR 30PSIA 0.19" .09V | SENSOR 30PSIA 0.19" .09V | SENSOR 30PSIA 0.19" .09V | SENSOR 30PSID 0.19" .09V |
| Series | SCX | SCX | SCX | SCX |
| Packaging | Bulk | Bulk | Bulk | Bulk |
