Product CatalogPart Number
SD05C
Manufacturer
MDDDescription
TVS DIODE 5VWM 18VC SOD323
Datasheet
DatasheetPackage
SC-76, SOD-323
In Stock
38,997 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation

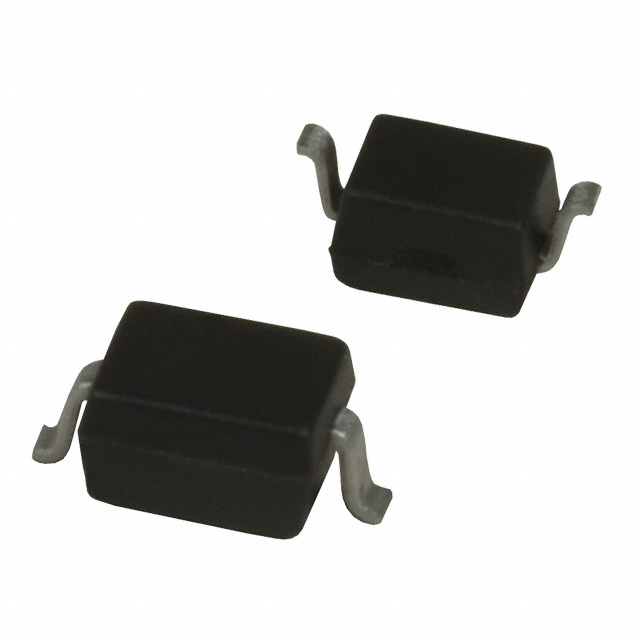

SD05C
SD05C
lmages are for reference only.Payment Methods
Delivery Services
18V Clamp 24A (8/20µs) Ipp Tvs Diode Surface Mount SOD-323
Quick Inquiry
SD05C
Specifications
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | MDD |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | RoHS Compliant |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 5V (Max) |
| Voltage - Breakdown (Min) | 6V |
| Voltage - Clamping (Max) @ Ipp | 18V |
| Current - Peak Pulse (10/1000µs) | 24A (8/20µs) |
| Power - Peak Pulse | 350W |
| Power Line Protection | Yes |
| Applications | General Purpose |
| Capacitance @ Frequency | 300pF @ 1MHz (Max) |
| Operating Temperature | -55°C ~ 150°C |
| Mounting Type | Surface Mount |
| Package / Case | SC-76, SOD-323 |
| Supplier Device Package | SOD-323 |
| Base Product Number | - |
| Unidirectional Channels | - |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
|
 |
 |

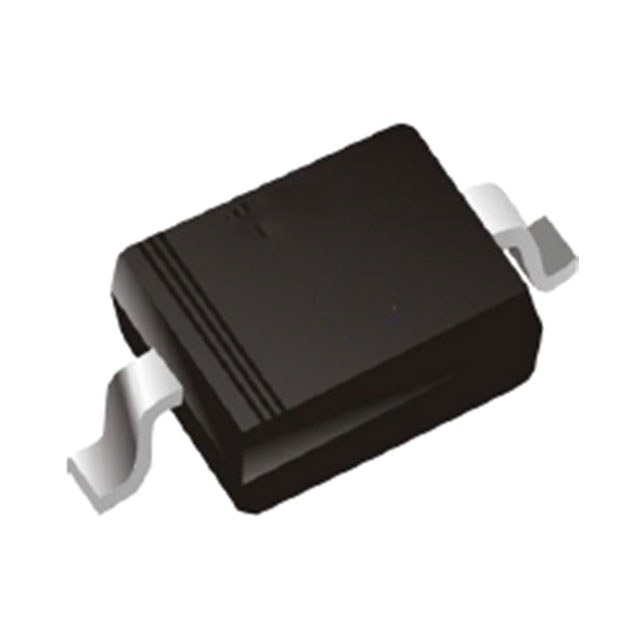

| Part Number | SD05 | SD05 | SD05-01FTG | SD05-7 |
| Manufacturer | MDD | SMC Diode Solutions | Littelfuse Inc. | Diodes Incorporated |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | TVS DIODE 5VWM 9.8VC SOD323 | TVS ARRAY 5V SOD-323 | TVS DIODE 5VWM 16.8VC SOD323 | TVS DIODE 5VWM 14.5VC SOD323 |
| Series | MDD | SMC Diode Solutions | Littelfuse Inc. | Diodes Incorporated |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
