SDQ12-470-R

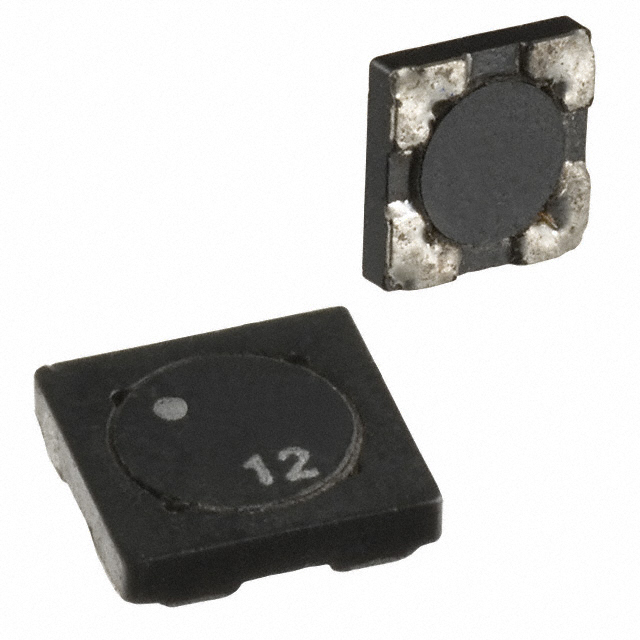

lmages are for reference only.SDQ12-470-R
INDUCT ARRAY 2 COIL 47.61UH SMD
DatasheetNonstandard
64,006 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Shielded 2 Coil Inductor Array 190.4 µH Inductance - Connected in Series 47.61 µH Inductance - Connected in Parallel 1.55Ohm DC Resistance (DCR) - Parallel 401 mA Nonstandard
SDQ12-470-R
| Category | Inductors, Coils, Chokes - Arrays-Signal Transformers - |
| Manufacturer | Eaton - Electronics Division |
| Series | SDQ |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Number of Coils | 2 |
| Inductance - Connected In Parallel | 47.61 µH |
| Inductance - Connected In Series | 190.4 µH |
| Tolerance | ±20% |
| Current Rating - Parallel | 401 mA |
| Current Rating - Series | 201 mA |
| Current Saturation - Parallel | 441 mA |
| Current Saturation - Series | 220 mA |
| DC Resistance (DCR) - Parallel | 1.55Ohm |
| DC Resistance (DCR) - Series | 6.21Ohm |
| Shielding | Shielded |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Size / Dimension | 0.205" L x 0.205" W (5.20mm x 5.20mm) |
| Height | 0.047" (1.19mm) |
| Base Product Number | - |
| Product Attribute | |
 |
|
 |
| Part Number | SDQ12-470-R | SDQ12-100-R | SDQ12-100-R | SDQ12-150-R |
| Manufacturer | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | INDUCT ARRAY 2 COIL 47.61UH SMD | INDUCT ARRAY 2 COIL 9.61UH SMD | INDUCT ARRAY 2 COIL 9.61UH SMD | INDUCT ARRAY 2 COIL 15.21UH SMD |
| Series | SDQ | SDQ | SDQ | SDQ |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
