SDR10EZPJ910

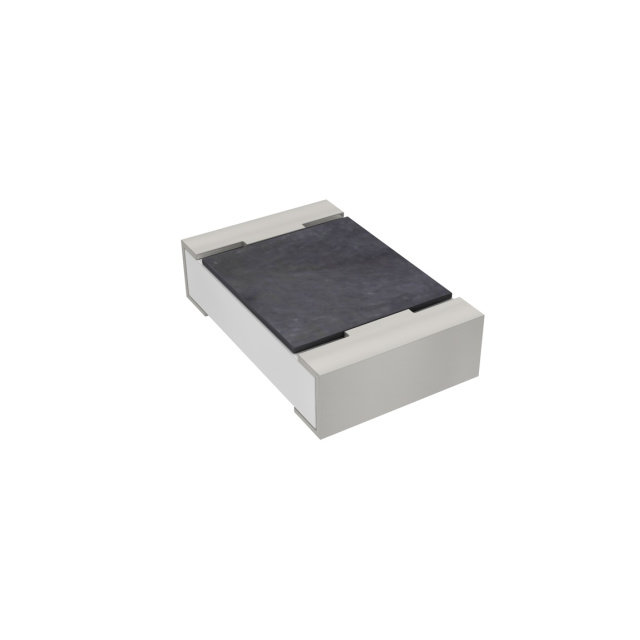

lmages are for reference only.SDR10EZPJ910
HIGH ANTI-SURGE THICK FILM CHIP
Datasheet0805 (2012 Metric)
49,423 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
91 Ohms ±5% 0.5W, 1/2W Chip Resistor 0805 (2012 Metric) Automotive AEC-Q200, Pulse Withstanding Thick Film
SDR10EZPJ910
| Category | Resistors - Chip Resistor Surface Mount - |
| Manufacturer | Rohm Semiconductor |
| Series | SDR |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Resistance | 91 Ohms |
| Tolerance | ±5% |
| Power (Watts) | 0.5W, 1/2W |
| Composition | Thick Film |
| Features | Automotive AEC-Q200, Pulse Withstanding |
| Temperature Coefficient | ±200ppm/°C |
| Operating Temperature | -55°C ~ 155°C |
| Package / Case | 0805 (2012 Metric) |
| Supplier Device Package | 0805 |
| Ratings | AEC-Q200 |
| Size / Dimension | 0.079" L x 0.049" W (2.00mm x 1.25mm) |
| Height - Seated (Max) | 0.026" (0.65mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

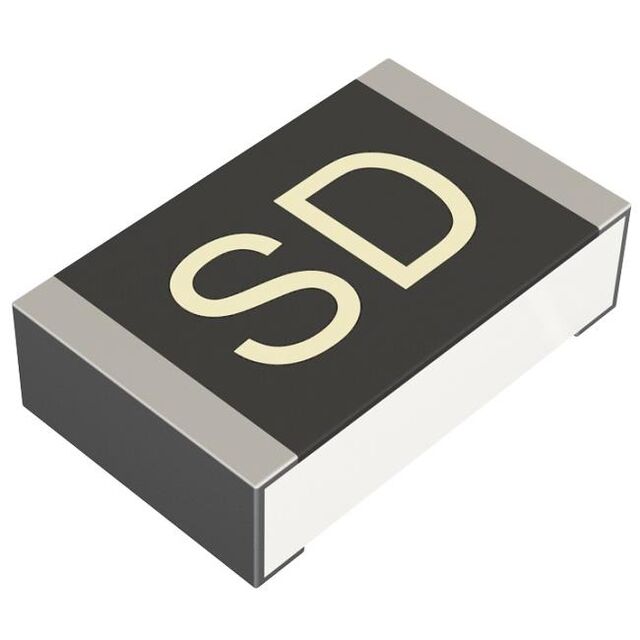

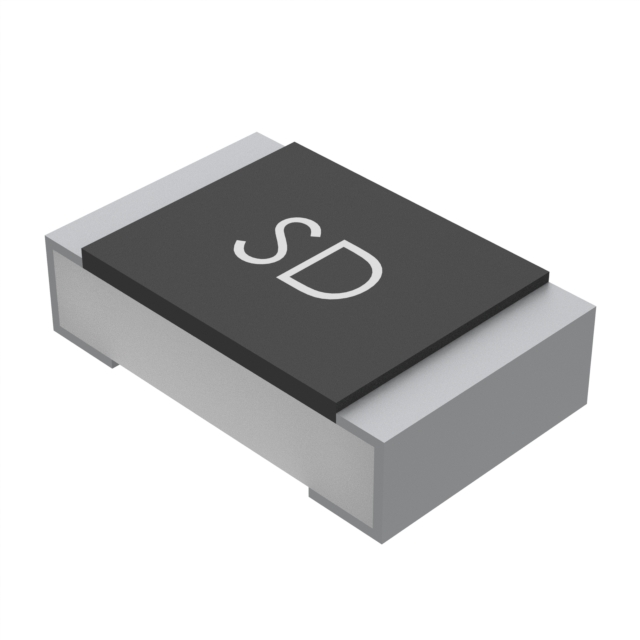

| Part Number | SDR10EZPJ912 | SDR10EZPJ913 | SDR10EZPJ | SDR10EZPJ100 |
| Manufacturer | Rohm Semiconductor | Rohm Semiconductor | Rohm Semiconductor | Rohm Semiconductor |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | HIGH ANTI-SURGE THICK FILM CHIP | HIGH ANTI-SURGE THICK FILM CHIP | HIGH ANTI-SURGE THICK FILM CHIP | HIGH ANTI-SURGE THICK FILM CHIP |
| Series | Rohm Semiconductor | Rohm Semiconductor | Rohm Semiconductor | Rohm Semiconductor |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
