Product CatalogPart Number
SDR6603-220M
Manufacturer
Bourns Inc.Description
FIXED IND 22UH 800MA 370MOHM SMD
Datasheet
DatasheetPackage
Nonstandard
In Stock
69,484 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
SDR6603-220M
SDR6603-220M

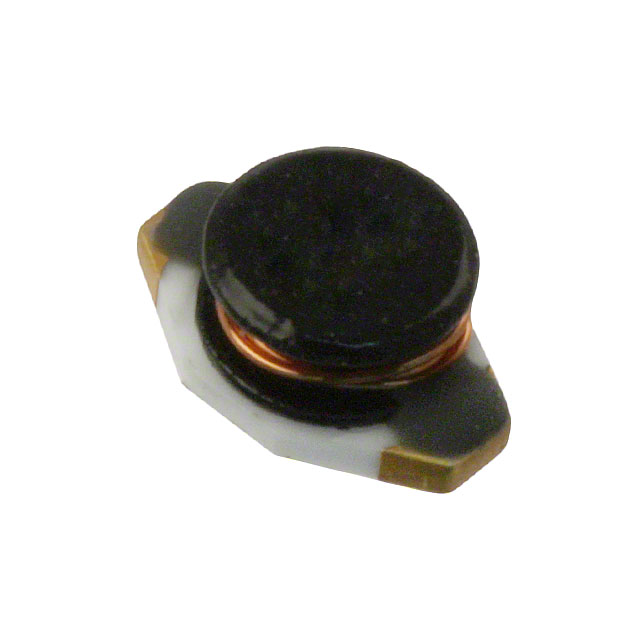

lmages are for reference only.Payment Methods
Delivery Services
22 µH Unshielded Drum Core, Wirewound Inductor 800 mA 370mOhm Max Nonstandard
Quick Inquiry
SDR6603-220M
Specifications
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Bourns Inc. |
| Series | SDR6603 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 22 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 800 mA |
| Current - Saturation (Isat) | 700mA |
| Shielding | Unshielded |
| DC Resistance (DCR) | 370mOhm Max |
| Q @ Freq | 16 @ 2.52MHz |
| Frequency - Self Resonant | 20MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.260" L x 0.175" W (6.60mm x 4.45mm) |
| Height - Seated (Max) | 0.115" (2.92mm) |
| Base Product Number | SDR6603 |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | SDR6603-221M | SDR6603-2R2M | SDR6603-100M | SDR6603-101M |
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 220UH 200MA 3.2OHM SMD | FIXED IND 2.2UH 2.4A 70 MOHM SMD | FIXED IND 10UH 1.1A 160 MOHM SMD | FIXED IND 100UH 300MA 1.3OHM SMD |
| Series | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
