SDURB3020

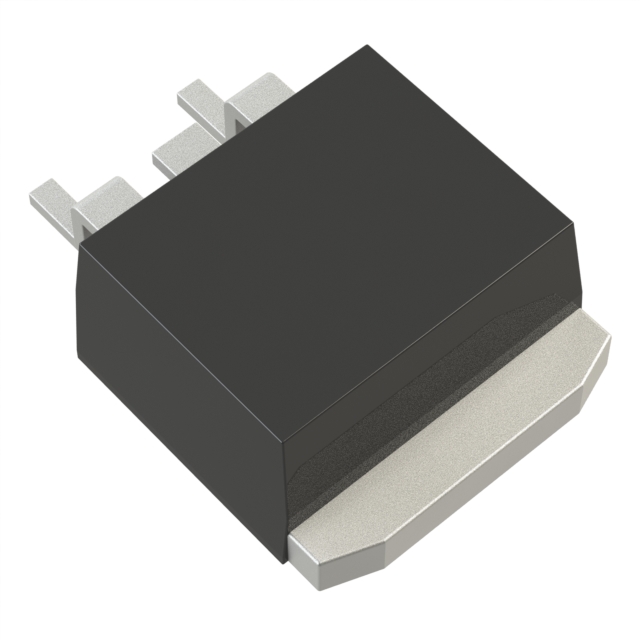

lmages are for reference only.SDURB3020
DIODE GEN PURP 200V 30A D2PAK
DatasheetTO-263-3, D2PAK (2 Leads + Tab), TO-263AB
98,023 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Diode 200 V 30A Surface Mount D2PAK
SDURB3020
| Category | Discrete Semiconductor Products - Diodes - Rectifiers |
| Manufacturer | SMC Diode Solutions |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) | 200 V |
| Current - Average Rectified (Io) | 30A |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V @ 30 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 45 ns |
| Current - Reverse Leakage @ Vr | 10 µA @ 200 V |
| Capacitance @ Vr, F | - |
| Mounting Type | Surface Mount |
| Package / Case | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB |
| Supplier Device Package | D2PAK |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Base Product Number | SDURB3020 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
|
 |
| Part Number | SDURB3040 | SDURB3060 | SDURB30Q60 | SDUR10020W |
| Manufacturer | SMC Diode Solutions | SMC Diode Solutions | SMC Diode Solutions | SMC Diode Solutions |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | 400V, 30A, D2PAK, ULTRA FAST REC | 600V, 30A, D2PAK, ULTRA FAST REC | DIODE GEN PURP 600V 30A D2PAK | 200V, 100A, TO-247AC, ULTRA FAST |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tube |
