SDWL1608CP22NGSTF

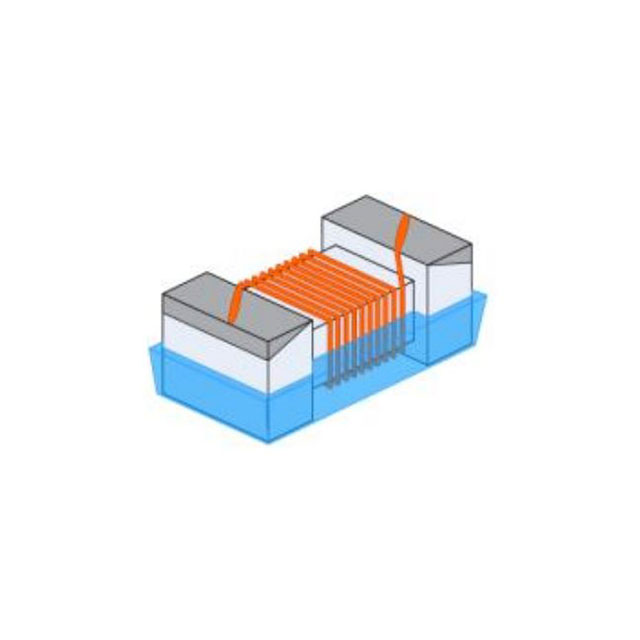

lmages are for reference only.SDWL1608CP22NGSTF
FIXED IND 22NH 850MA 140MOHM SMD
Datasheet0603 (1608 Metric)
24,906 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
22 nH Unshielded Drum Core, Wirewound Inductor 850 mA 140mOhm Max 0603 (1608 Metric)
SDWL1608CP22NGSTF
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Shenzhen Sunlord Electronics Co., Ltd. |
| Series | SDWL-CP |
| Packaging | Tape & Reel (TR) |
| RoHS Status | |
| Type | Drum Core, Wirewound |
| Material - Core | Ceramic |
| Inductance | 22 nH |
| Tolerance | ±2% |
| Current Rating (Amps) | 850 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 140mOhm Max |
| Q @ Freq | 44 @ 250MHz |
| Frequency - Self Resonant | 3.15GHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 250 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0603 (1608 Metric) |
| Supplier Device Package | 0603 |
| Size / Dimension | 0.067" L x 0.043" W (1.70mm x 1.10mm) |
| Height - Seated (Max) | 0.043" (1.10mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | SDWL1608CP22NJSTF | SDWL1608CP23NGSTF | SDWL1608CP23NJSTF | SDWL1608CP24NGSTF |
| Manufacturer | Shenzhen Sunlord Electronics Co., Ltd. | Shenzhen Sunlord Electronics Co., Ltd. | Shenzhen Sunlord Electronics Co., Ltd. | Shenzhen Sunlord Electronics Co., Ltd. |
| RoHS Status | ||||
| Description | FIXED IND 22NH 850MA 140MOHM SMD | FIXED IND 23NH 850MA 183MOHM SMD | FIXED IND 23NH 850MA 183MOHM SMD | FIXED IND 24NH 1.1A 85 MOHM SMD |
| Series | Shenzhen Sunlord Electronics Co., Ltd. | Shenzhen Sunlord Electronics Co., Ltd. | Shenzhen Sunlord Electronics Co., Ltd. | Shenzhen Sunlord Electronics Co., Ltd. |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
