SDX010IND4
lmages are for reference only.SDX010IND4
SENSOR 0.36PSID 0.09" .025V
Datasheet6-DIP Module
34,505 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Pressure Sensor 0.36PSI (2.49kPa) Differential Male - 0.09" (2.3mm) Tube 0 mV ~ 25 mV (12V) 6-DIP Module
SDX010IND4
| Category | Sensors, Transducers - Pressure Sensors-Transducers - |
| Manufacturer | Honeywell Sensing and Productivity Solutions |
| Series | SDX IND |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Base Product Number | - |
| Applications | Board Mount |
| Pressure Type | Differential |
| Operating Pressure | 0.36PSI (2.49kPa) |
| Output Type | Wheatstone Bridge |
| Output | 0 mV ~ 25 mV (12V) |
| Accuracy | ±1% |
| Voltage - Supply | 20V |
| Port Size | Male - 0.09" (2.3mm) Tube |
| Port Style | Barbless |
| Features | Temperature Compensated |
| Termination Style | PC Pin |
| Maximum Pressure | 6.97PSI (48.09kPa) |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | 6-DIP Module |
| Supplier Device Package | - |
| Grade | - |
| Qualification | - |
| Product Attribute | |
 |
|
 |
| Part Number | SDX010IND4 | SDX005IND4 | SDX005IND4 | SDX01D4 |
| Manufacturer | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |

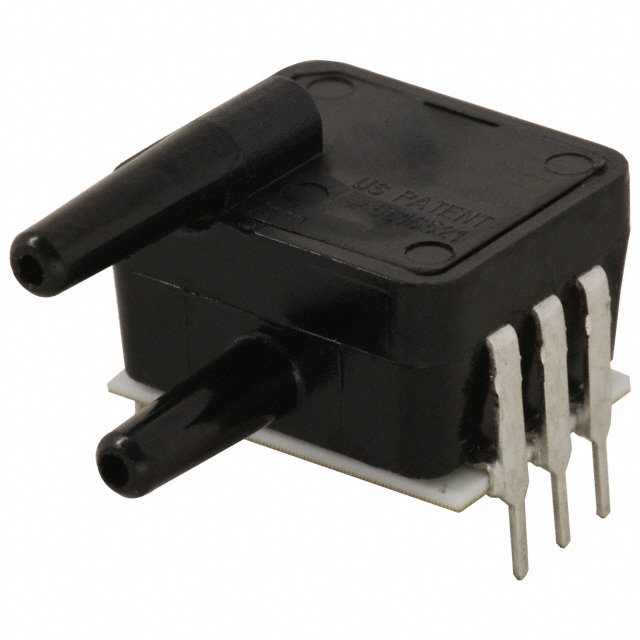

| Description | SENSOR 0.36PSID 0.09" .025V | SENSOR 0.18PSID 0.09" .02V | SENSOR 0.18PSID 0.09" .02V | SENSOR 1PSID 0.09" .018V |
| Series | SDX IND | SDX IND | SDX IND | SDX |
| Packaging | Bulk | Bulk | Bulk | Bulk |
