SDX100A2
lmages are for reference only.SDX100A2
SENSOR 100PSIA 0.11" 0.1V
Datasheet6-DIP Module
36,586 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Pressure Sensor 100PSI (689.48kPa) Absolute Male - 0.11" (2.67mm) Tube 0 mV ~ 100 mV (12V) 6-DIP Module
SDX100A2
| Category | Sensors, Transducers - Pressure Sensors-Transducers - |
| Manufacturer | Honeywell Sensing and Productivity Solutions |
| Series | SDX |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Base Product Number | SDX100 |
| Applications | Board Mount |
| Pressure Type | Absolute |
| Operating Pressure | 100PSI (689.48kPa) |
| Output Type | Wheatstone Bridge |
| Output | 0 mV ~ 100 mV (12V) |
| Accuracy | ±1% |
| Voltage - Supply | 20V |
| Port Size | Male - 0.11" (2.67mm) Tube |
| Port Style | Barbless |
| Features | Temperature Compensated |
| Termination Style | PC Pin |
| Maximum Pressure | 150PSI (1034.21kPa) |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | 6-DIP Module |
| Supplier Device Package | - |
| Grade | - |
| Qualification | - |
| Product Attribute | |
 |
|
 |

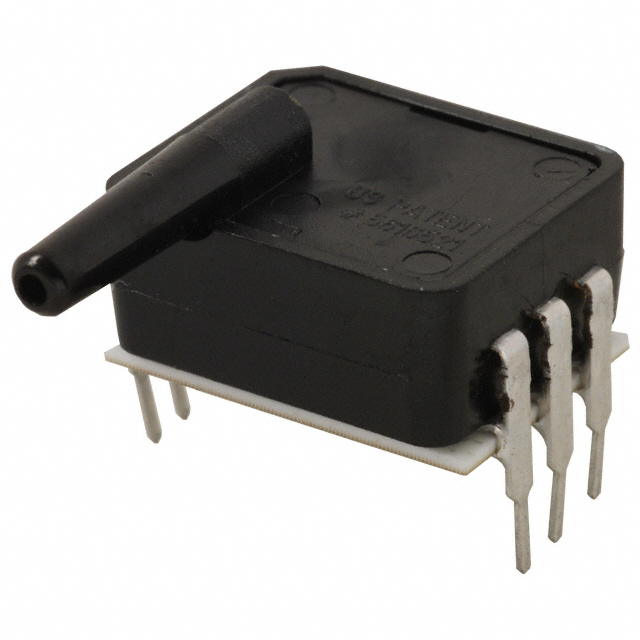

| Part Number | SDX100A2 | SDX100A2-A | SDX100A2-A | SDX100A4 |
| Manufacturer | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions |
| RoHS Status | RoHS Compliant | RoHS Compliant | ||
| Description | SENSOR 100PSIA 0.11" 0.1V | PRESSURE-JZ SILICON PRESSURE SDX | PRESSURE-JZ SILICON PRESSURE SDX | SENSOR 100PSIA 0.09" 0.1V |
| Series | SDX | * | * | SDX |
| Packaging | Bulk | Bulk | Bulk | Bulk |
