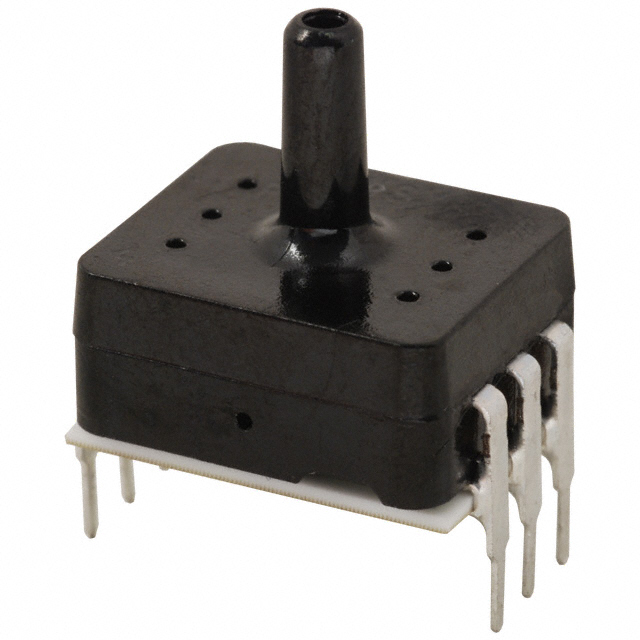

SDX15A2-A
lmages are for reference only.SDX15A2-A
SENSOR 15PSIA 0.11" .09V
Datasheet6-DIP Module
51,853 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Pressure Sensor 15PSI (103.42kPa) Absolute Male - 0.11" (2.67mm) Tube 0 mV ~ 90 mV (12V) 6-DIP Module
SDX15A2-A
| Category | Sensors, Transducers - Pressure Sensors-Transducers - |
| Manufacturer | Honeywell Sensing and Productivity Solutions |
| Series | SDX |
| Packaging | Tray |
| RoHS Status | RoHS Compliant |
| Base Product Number | SDX15 |
| Applications | Board Mount |
| Pressure Type | Absolute |
| Operating Pressure | 15PSI (103.42kPa) |
| Output Type | Wheatstone Bridge |
| Output | 0 mV ~ 90 mV (12V) |
| Accuracy | ±0.25% |
| Voltage - Supply | 20V |
| Port Size | Male - 0.11" (2.67mm) Tube |
| Port Style | Barbless |
| Features | Temperature Compensated |
| Termination Style | PC Pin |
| Maximum Pressure | 30PSI (206.84kPa) |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | 6-DIP Module |
| Supplier Device Package | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

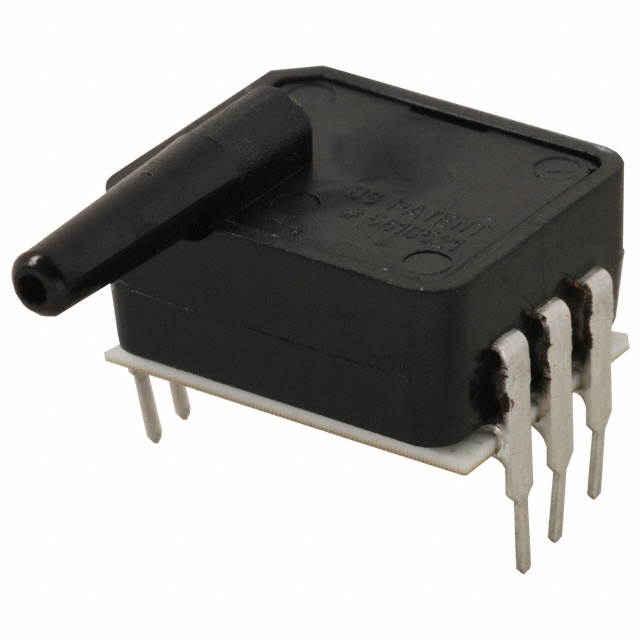

| Part Number | SDX15A2 | SDX15A4 | SDX15A4-A | SDX005IND4 |
| Manufacturer | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | SENSOR 15PSIA 0.11" .09V | SENSOR 15PSIA 0.09" .09V | SENSOR 15PSIA 0.11" .09V | SENSOR 0.18PSID 0.09" .02V |
| Series | SDX | SDX | SDX | SDX IND |
| Packaging | Bulk | Bulk | Tray | Bulk |
