SF-0603FP025F-2

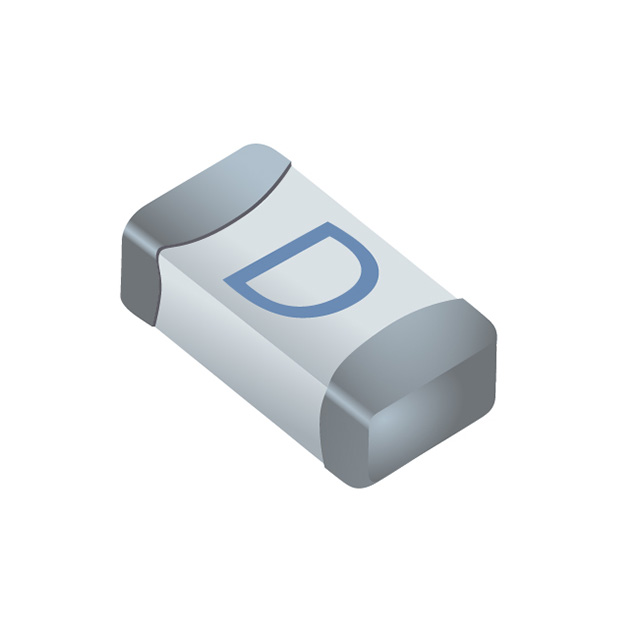

lmages are for reference only.SF-0603FP025F-2
FUSE BRDMT 250MA 65VAC/65DC 0603
Datasheet0603 (1608 Metric)
70,877 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
250 mA 65 V AC 65 V DC Fuse Board Mount (Cartridge Style Excluded) Surface Mount 0603 (1608 Metric)
SF-0603FP025F-2
| Category | Circuit Protection - Fuses - |
| Manufacturer | Bourns Inc. |
| Series | SinglFuse™ SF-0603FPxxxF |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Surface Mount |
| Fuse Type | Board Mount (Cartridge Style Excluded) |
| Current Rating (Amps) | 250 mA |
| Voltage Rating - AC | 65 V |
| Voltage Rating - DC | 65 V |
| Response Time | Fast Blow |
| Package / Case | 0603 (1608 Metric) |
| Breaking Capacity @ Rated Voltage | 13A AC, 50A DC |
| Melting I²t | 0.0016 |
| Approval Agency | UL |
| Operating Temperature | -55°C ~ 90°C |
| Color | - |
| Size / Dimension | 0.063" L x 0.032" W x 0.012" H (1.60mm x 0.81mm x 0.30mm) |
| Base Product Number | SF-0603 |
| DC Cold Resistance | 1.1 Ohms |
| Product Attribute |  |
 |
 |
 |
| Part Number | SF-0603FP015F-2 | SF-0603FP020F-2 | SF-0603FP0375F-2 | SF-0603FP050F-2 |
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FUSE BRDMT 150MA 65VAC/65DC 0603 | FUSE BRDMT 200MA 65VAC/65DC 0603 | FUSE BRDMT 375MA 65VAC/65DC 0603 | FUSE BRDMT 500MA 65VAC/65DC 0603 |
| Series | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
