SFF502GH

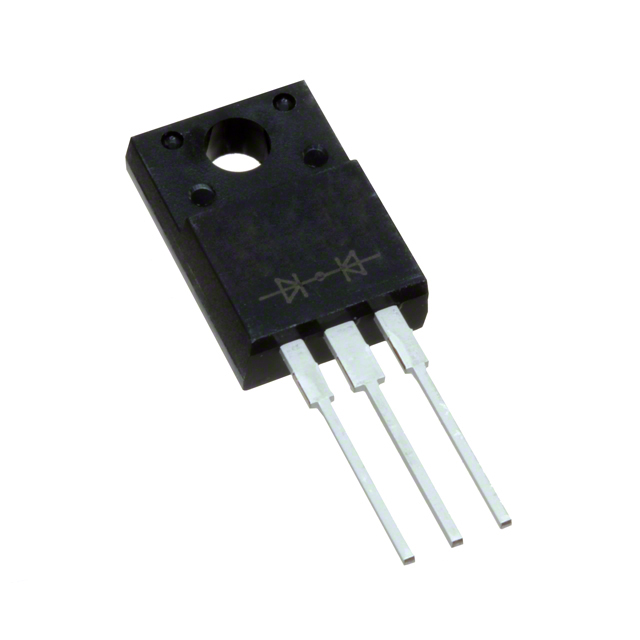

lmages are for reference only.SFF502GH
DIODE ARRAY GP 100V 5A ITO220AB
DatasheetTO-220-3 Full Pack, Isolated Tab
46,069 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Diode Array 1 Pair Common Cathode 100 V 5A Through Hole TO-220-3 Full Pack, Isolated Tab
SFF502GH
| Category | Discrete Semiconductor Products - Diodes - Rectifiers |
| Manufacturer | Taiwan Semiconductor Corporation |
| Series | - |
| Packaging | Tube |
| RoHS Status | |
| Diode Configuration | 1 Pair Common Cathode |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) | 100 V |
| Current - Average Rectified (Io) (per Diode) | 5A |
| Voltage - Forward (Vf) (Max) @ If | 980 mV @ 2.5 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Current - Reverse Leakage @ Vr | 10 µA @ 100 V |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Mounting Type | Through Hole |
| Package / Case | TO-220-3 Full Pack, Isolated Tab |
| Supplier Device Package | ITO-220AB |
| Base Product Number | - |
| Reverse Recovery Time (trr) | 35 ns |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Product Attribute |  |
 |
|
 |
| Part Number | SFF501G | SFF501GH | SFF503G | SFF503GH |
| Manufacturer | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation |
| RoHS Status | ||||
| Description | DIODE ARRAY GP 50V 5A ITO220AB | DIODE ARRAY GP 50V 5A ITO220AB | DIODE ARRAY GP 150V 5A ITO220AB | DIODE ARRAY GP 150V 5A ITO220AB |
| Series | - | - | - | - |
| Packaging | Tube | Tube | Tube | Tube |
