Product CatalogPart Number
SFH 2401
Manufacturer
ams-OSRAM USA INC.Description
SENSOR PHOTODIODE 950NM 2SMD GW
Datasheet
DatasheetPackage
2-SMD, Gull Wing
In Stock
90,817 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
SFH 2401
SFH 2401
lmages are for reference only.Payment Methods
Delivery Services
Photodiode 950nm 100ns 120° 2-SMD, Gull Wing
Quick Inquiry
SFH 2401
Specifications
| Category | Sensors, Transducers - Optical Sensors - Photodiodes |
| Manufacturer | ams-OSRAM USA INC. |
| Series | CEA |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT)--> |
| RoHS Status | ROHS3 Compliant |
| Wavelength | 950nm |
| Color - Enhanced | Blue |
| Spectral Range | 300nm ~ 1100nm |
| Diode Type | PIN |
| Responsivity @ nm | - |
| Response Time | 100ns |
| Voltage - DC Reverse (Vr) (Max) | 16 V |
| Current - Dark (Typ) | 1nA |
| Active Area | 8.12mm² |
| Viewing Angle | 120° |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 2-SMD, Gull Wing |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute | |
 |
|
 |

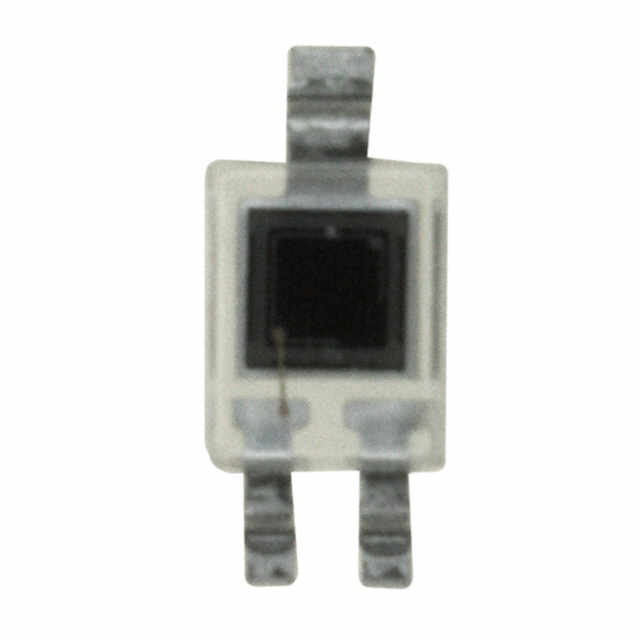

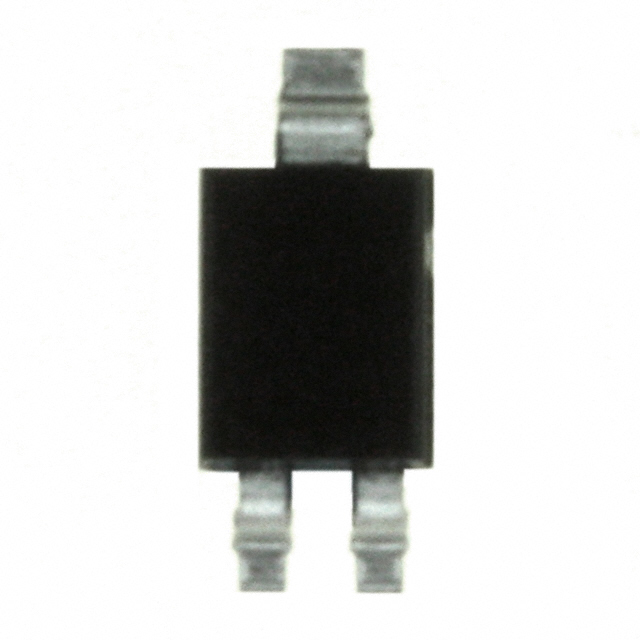

| Part Number | SFH 2400 FAR | SFH 2400-Z | SFH 2400FA | SFH 2400FA-Z |
| Manufacturer | ams-OSRAM USA INC. | ams-OSRAM USA INC. | ams-OSRAM USA INC. | ams-OSRAM USA INC. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | SENSOR PHOTODIODE 900NM 3SMD GW | SENSOR PHOTODIODE 900NM 3SMD GW | SENSOR PHOTODIODE 900NM 3SMD GW | SENSOR PHOTODIODE 900NM 3SMD GW |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT)--> | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT)--> |
