Product CatalogPart Number
SFH 320-3-Z
Manufacturer
ams OSRAMDescription
SFH320 - Silicon NPN Phototransi
Datasheet
DatasheetPackage
2-PLCC
In Stock
73,597 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
SFH 320-3-Z
SFH 320-3-Z

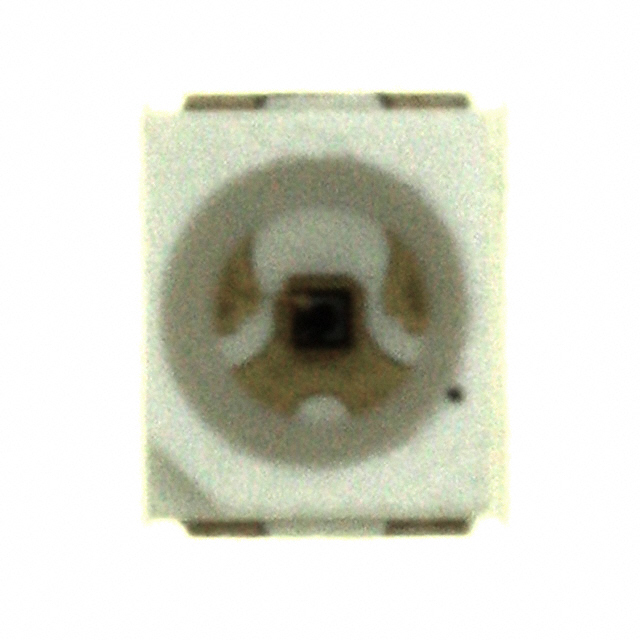

lmages are for reference only.Payment Methods
Delivery Services
Phototransistors 980nm Top View 2-PLCC
Quick Inquiry
SFH 320-3-Z
Specifications
| Category | Sensors, Transducers - Optical Sensors - Phototransistors |
| Manufacturer | ams OSRAM |
| Series | TOPLED® |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Voltage - Collector Emitter Breakdown (Max) | 35 V |
| Current - Collector (Ic) (Max) | 15 mA |
| Current - Dark (Id) (Max) | 50 nA |
| Wavelength | 980nm |
| Viewing Angle | 120° |
| Mounting Type | Surface Mount |
| Orientation | Top View |
| Operating Temperature | -40°C ~ 100°C |
| Package / Case | 2-PLCC |
| Base Product Number | - |
| Power - Max | 165 mW |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute | |
|
 |
|
| Part Number | SFH 320-3-Z | SFH 320-3/4 R33-Z | SFH 320-3/4-Z | SFH 320-4-Z |
| Manufacturer | ams-OSRAM USA INC. | ams-OSRAM USA INC. | ams-OSRAM USA INC. | ams-OSRAM USA INC. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | SENSOR PHOTO 980NM TOP VIEW 2LCC | SENSOR PHOTO 980NM TOP VIEW 2SMD | SENSOR PHOTO 980NM TOP VIEW PLCC | SENSOR PHOTO 980NM TOP VIEW 2LCC |
| Series | TOPLED | - | Advanced Power TOPLED® | TOPLED |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT)--> | Bulk | Tape & Reel (TR)-->Cut Tape (CT)--> | Tape & Reel (TR) |
